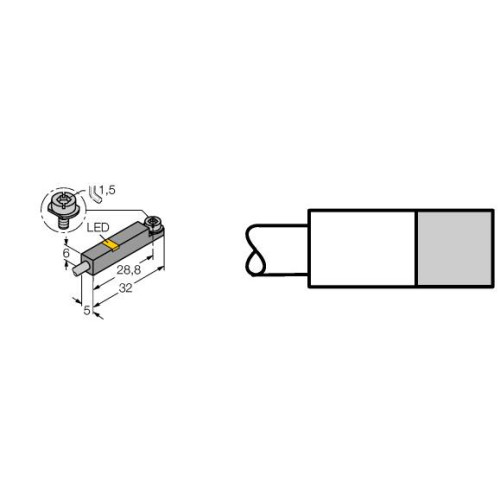

Magnetic Field Sensor, For Pneumatic Cylinders

Manufacturer's No: BIM-INT-Y1X     Manufacturer: Turck Banner
Magnetic Field Sensor, For Pneumatic Cylinders

Availability On Request

POA
  • Magnetic Field Sensor for Pneumatic Cylinders
  • Rectangular shape, 6 mm height
  • Cable length: 2 m
  • Material: Plastic (PP)
  • Sensor type: Magnetic-inductive
  • Power supply: DC 2-wire, 8.2 VDC
  • Output: DIN EN 60947-5-6 (NAMUR)
  • Cable connection
  • ATEX category II 1 G, Ex zone 0
  • ATEX category II 1 D, Ex zone 20

Read more

  • Safety Integrity Level (SIL): SIL2 (Low Demand Mode) per IEC 61508, PL c per ISO 13849-1 with HFT0
  • SIL3 (All Demand Mode) per IEC 61508, PL e per ISO 13849-1 with redundant configuration HFT1


Product

Manufacturer Material ID -
BIM-INT-Y1X
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
PL
UNSPSC -
41111926

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 1D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 1G
Height of sensor -
6 Millimetre
Housing material -
Plastic
Length of sensor -
32 Millimetre
Performance level acc. to EN ISO 13849-1 -
Level c
SIL according to IEC 61508 -
2
Suitable for safety functions -
Type of actuation -
Magnet
Type of electric connection -
Cable
Type of switching output -
NAMUR
Voltage type -
DC
Width sensor -
5 Millimetre
