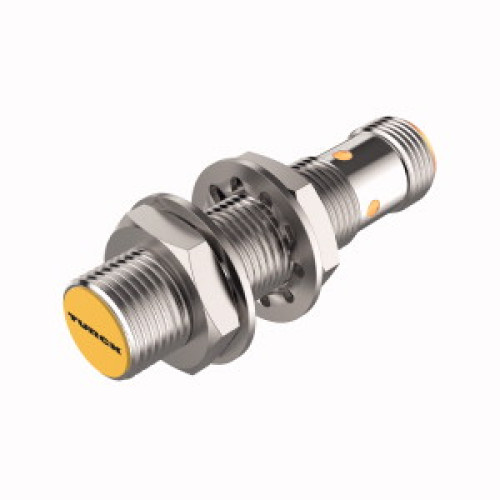

Magnetic Field Sensor, Magnetic-inductive Proximity Sensor

Manufacturer's No: BIM-M12E-Y1X-H1141     Manufacturer: Turck Banner
Magnetic Field Sensor, Magnetic-inductive Proximity Sensor

Availability On Request

POA
  • Magnetic Field Sensor
  • Magnetic-inductive Proximity Sensor
  • Rated switching distance: 90 mm

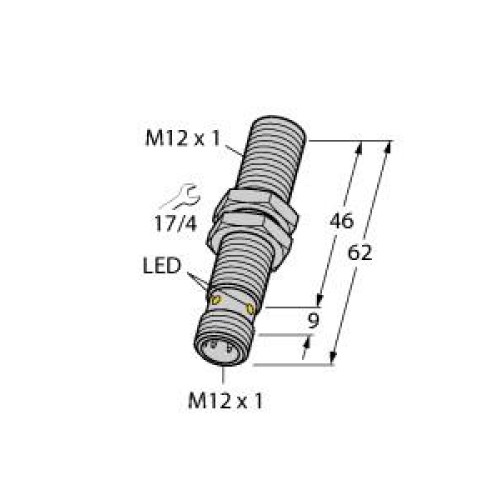

  • Threaded barrel: M12 x 1, Chrome-plated brass
  • Rated operating distance: 90 mm with DMR31-15-5 magnet
  • DC 2-wire, nominal 8.2 VDC
  • Output according to DIN EN 60947-5-6 (NAMUR)
  • Male connector: M12 x 1
  • ATEX category II 1 G, Ex zone 0
  • ATEX category II 1 D, Ex zone 20

Read more

  • SIL2 (Low Demand Mode) according to IEC 61508, PL c according to ISO 13849-1 with HFT0
  • SIL3 (All Demand Mode) according to IEC 61508, PL e according to ISO 13849-1 with redundant configuration HFT1


Product

Manufacturer Material ID -
BIM-M12E-Y1X-H1141
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
PL
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Coating housing -
Chrome plated
Construction type housing -
Cylinder, screw-thread
Degree of protection (IP rating) -
IP67
Diameter sensor -
12 Millimetre
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 1D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 1G
Housing material -
Other
Length of sensor -
62 Millimetre
Performance level acc. to EN ISO 13849-1 -
Level c
SIL according to IEC 61508 -
2
Suitable for safety functions -
Switching distance -
90 Millimetre
Type of actuation -
Magnet
Type of electric connection -
Plug-in connection
Type of switching output -
NAMUR
Voltage type -
DC
