Magnetic Field Sensor, For Pneumatic Cylinders, Operating voltage Nom. 8.2

Manufacturer's No: BIM-NST-Y1X     Manufacturer: Turck Banner
Magnetic Field Sensor, For Pneumatic Cylinders, Operating voltage Nom. 8.2

Availability Available to order

£76.14
  • Magnetic Field Sensor for Pneumatic Cylinders
  • Material: Plastic (PA12-GF30)
  • Cable Length: 2 meters
  • Sensor Type: Magnetic-inductive
  • Power Supply: DC 2-wire, 8.2 VDC
  • Output: According to DIN EN 60947-5-6 (NAMUR)
  • Cable Connection
  • ATEX Category II 2 G, Ex Zone 1
  • ATEX Category II 1 D, Ex Zone 20
  • Safety Integrity Level (SIL): SIL 2 (Low Demand Mode) per IEC 61508, PL c per ISO 13849-1 at HFT0

Read more

  • SIL 3 (All Demand Mode) per IEC 61508, PL e per ISO 13849-1 with redundant configuration HFT1


Product

Manufacturer Material ID -
BIM-NST-Y1X
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
PL
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 1D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 2G

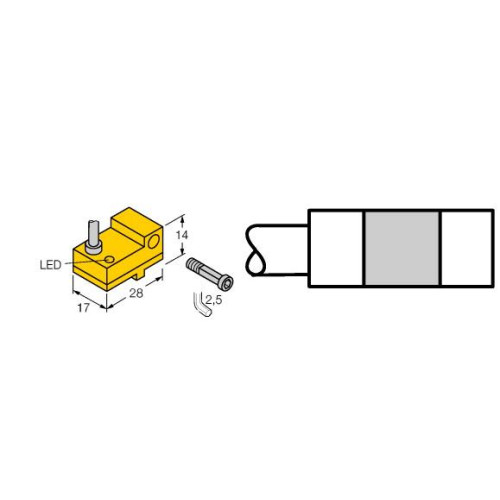

Height of sensor -
14 Millimetre
Housing material -
Plastic
Length of sensor -
28 Millimetre
Performance level acc. to EN ISO 13849-1 -
Level c
SIL according to IEC 61508 -
2
Suitable for safety functions -
Type of actuation -
Magnet
Type of electric connection -
Cable
Type of switching output -
NAMUR
Voltage type -
DC
Width sensor -
17 Millimetre
