4685761

Magnetic Field Sensor, For Pneumatic Cylinders

Manufacturer's No: BIM-UNT-AP6X/S1160     Manufacturer: Turck Banner
Magnetic Field Sensor, For Pneumatic Cylinders

Availability On Request

£70.52
  • Magnetic field sensor for pneumatic cylinders
  • Operating voltage: 10-30 VDC
  • Cable length: 2 m
  • Suitable for T-groove cylinders without mounting accessories
  • Optional accessories available for mounting on other cylinder designs
  • Magneto-resistive sensor with stable mounting
  • TPU cable designed for welding areas
  • DC 3-wire sensor with NO contact
  • PNP output with cable connection
  • One-hand mounting capability


Product

Manufacturer Material ID -
BIM-UNT-AP6X/S1160
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CH
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Cross-/short circuit identification possible -
Degree of protection (IP rating) -
IP67

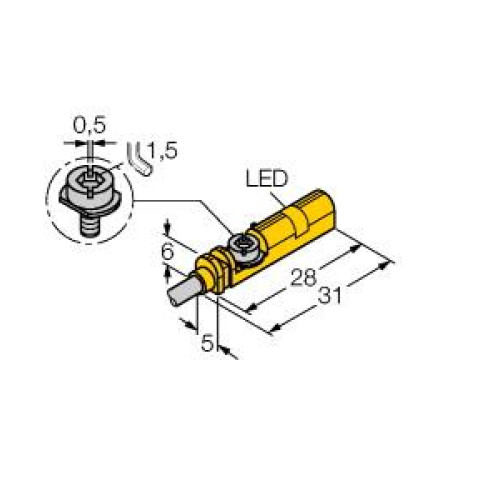

Height of sensor -
6 Millimetre
Housing material -
Plastic
Length of sensor -
28 Millimetre
Rated supply voltage at DC -
10 Volt
Type of actuation -
Magnet
Type of electric connection -
Cable
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
5 Millimetre
Turck Banner

Availability On Request

£70.52
