6914566

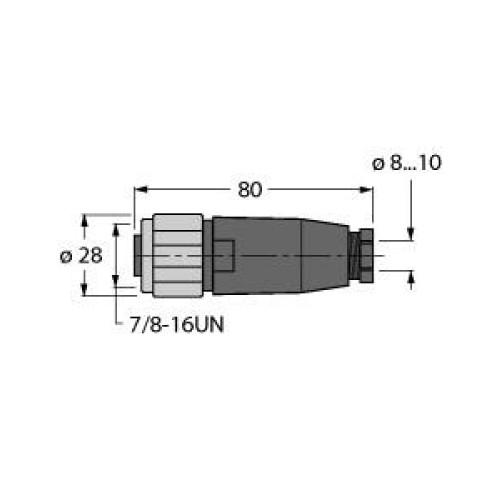

Field-Wireable Connector, 7/8? Female, Straight

Manufacturer's No: BKV4140-0/11     Manufacturer: Turck Banner
Field-Wireable Connector, 7/8? Female, Straight

Availability On Request

£44.74
  • Field-Wireable Connector
  • 7/8" Female, Straight
  • Voltage: 250 V
  • For use in PROFIBUS-PA and FOUNDATION fieldbus applications
  • Screw-clamp terminal
  • Stainless steel coupling nut
  • 4-pin
  • PG11 screw-in thread
  • Cable feedthrough: 8.0 - 10.0 mm


Product

Manufacturer Material ID -
BKV4140-0/11
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85366990990
Country of Origin -
HU
UNSPSC -
39121402

Technical Specification

Ambient temperature -
-40 Degrees celsius
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Contact type -
Bus
Degree of protection (IP), mounted -
IP67
Diameter connector -
10 Millimetre
Housing material -
Plastic
Material of contact surface -
Gold
Pollution degree -
3
Rated current In -
9 Ampere
Rated voltage -
250 Volt
Type of electric connection -
Other
Type of housing -
Straight
Turck Banner

Availability On Request

£44.74
