6827325

BL20 Economy Module, 8 2-wire Analog Inputs U/I resp. 4 2/3-wire PT/NI Inputs

Manufacturer's No: BL20-E-8AI-U/I-4PT/NI     Manufacturer: Turck Banner
BL20 Economy Module, 8 2-wire Analog Inputs U/I resp. 4 2/3-wire PT/NI Inputs

Availability On Request

£258.96
  • BL20 Economy Module with integrated electronics and connection technology
  • 8 analog 2-wire U/I inputs or 4 2/3-wire PT/NI inputs
  • Fieldbus-independent operation
  • Connectivity: Push-in terminals for easy installation
  • Protection class IP20 for safety
  • LEDs for status and diagnostic indication
  • Electronics galvanically separated from field level via optocouplers
  • Input options: 0-20 mA, 4-20 mA, -10 to +10 VDC, or 0 to +10 VDC
  • Passive input requiring external supply
  • Option to combine 2 analog inputs into a PT/NI 2/3-wire input


Product

Manufacturer Material ID -
BL20-E-8AI-U/I-4PT/NI
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85389091890
Country of Origin -
DE
UNSPSC -
39121402

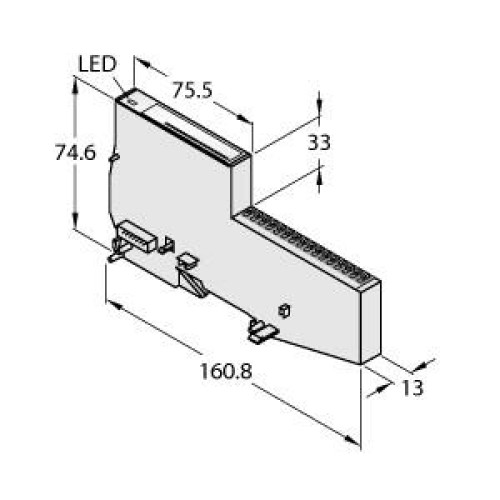

Technical Specification

Degree of protection (IP rating) -
IP20
Depth -
13 Millimetre
Height -
74.6 Millimetre
Resolution of the analogue inputs -
16 Bit
Resolution of the analogue outputs -
16 Bit
Width -
160.8 Millimetre
Turck Banner

Availability On Request

£258.96
