38544 {B}

MINI-ARRAY: Receiver Sensor 600 (23.6 in), Beam Spacing: 19 (0.75 in), Total Beams = 32, System Range (w/ matching emitter) = 0.9-

Manufacturer's No: BMRL2416A     Manufacturer: Turck Banner
MINI-ARRAY: Receiver Sensor 600 (23.6 in), Beam Spacing: 19 (0.75 in), Total Beams = 32, System Range (w/ matching emitter) = 0.9-17 m, System Requires 2 Quick-Disconnect Cables

Availability Available to order

£847.86
  • Measuring Light Screen
  • Receiver included
  • Max. sensing range: 17 meters
  • Max. range: 17000 mm
  • Minimum target size: 19 mm
  • Scan field: 600 mm
  • Operating voltage: 11.4 to 14 VDC
  • Protection class: IP65
  • Adjustment via software


Product

Manufacturer Material ID -
BMRL2416A
Net Weight -
1.31kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
US
UNSPSC -
39122216

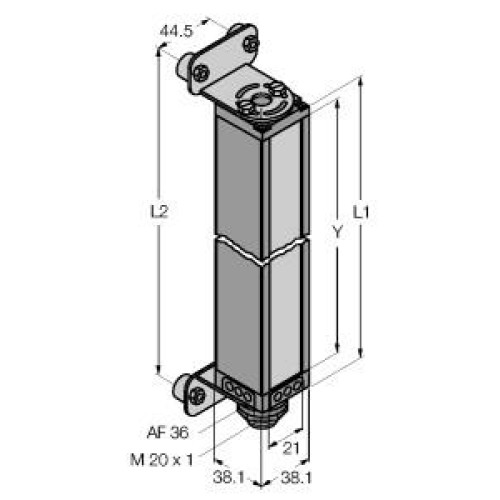

Technical Specification

Ambient temperature -
-20 Degrees celsius
Height of sensor -
659 Millimetre
Length of sensor -
38.1 Millimetre
Resolution of the light curtain -
19 Millimetre
Safety field height -
591 Millimetre
Scope of delivery of the one-way system -
Receiver
Type of electric connection -
Connector 7/8 inch
Width sensor -
38.1 Millimetre
Turck Banner

Availability Available to order

£847.86
