3039585

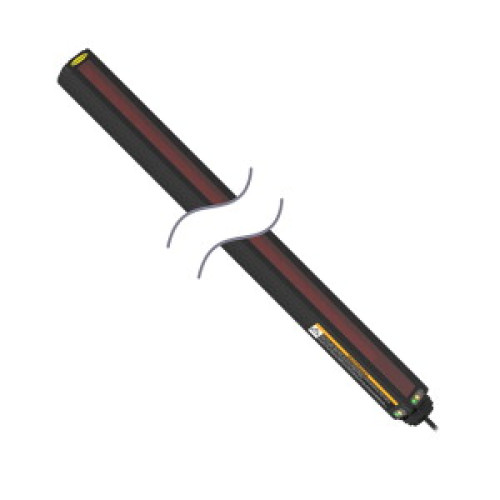

MINIARRAY: Receiver Sensor 752mm 29.6 in.; Beam Spacing: 9.5mm 0.38 in.; Total Beams 80; System Range w matching emitter 0.6 to 6.

Manufacturer's No: BMRL3032A
MINIARRAY: Receiver Sensor 752mm 29.6 in.; Beam Spacing: 9.5mm 0.38 in.; Total Beams 80; System Range w matching emitter 0.6 to 6.1m; System Requires 2 QuickDisconnect Cables;

Availability Back Order

£1,470.34
  • Receiver Sensor: 752mm (29.6 in)
  • Beam Spacing: 9.5mm (0.38 in)
  • Total Beams: 80
  • System Range with matching emitter: 0.6m to 6.1m
  • System requires 2 QuickDisconnect Cables


Product

Manufacturer Material ID -
BMRL3032A
Net Weight -

Additional Product Information

UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Height of sensor -
810 Millimetre
Length of sensor -
38.1 Millimetre
Resolution of the light curtain -
9.7 Millimetre
Safety field height -
752 Millimetre
Scope of delivery of the one-way system -
Receiver
Type of electric connection -
Connector 7/8 inch
Width sensor -
38.1 Millimetre


Availability Back Order

£1,470.34
