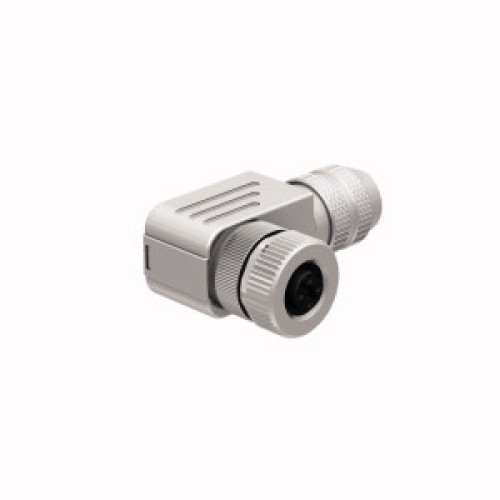

Field-Wireable Connector, Female Connector M12 × 1, Angled

Manufacturer's No: BMWS8251-8.5     Manufacturer: Turck Banner
Field-Wireable Connector, Female Connector M12 × 1, Angled

Availability Available to order

POA
  • Field-wireable female M12 × 1 angled connector
  • Voltage: 125 V
  • Designed for PROFIBUS-DP applications at speeds up to 12 Mbps
  • Shielding provided via iris spring connection
  • B-coding with metal housing
  • Screw-clamp terminal with 5-pin configuration
  • M18 × 1 metric screw-in thread
  • Compatible with cable diameters ranging from 6.0 to 8.5 mm


Product

Manufacturer Material ID -
BMWS8251-8.5
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85366990990
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121402

Technical Specification

Ambient temperature -
-40 Degrees celsius
Connectable conductor cross section fine-strand with cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Connectable conductor cross section solid-core -
0.14 Square millimetre
Contact type -
Bus
Degree of protection (IP), mounted -
IP67
Diameter connector -
8.5 Millimetre
Housing material -
Brass
Material of contact surface -
Gold
Rated current In -
4 Ampere
Rated voltage -
125 Volt
Type of electric connection -
Other
Type of housing -
Angled
