4609759

Inductive Sensor

Manufacturer's No: BI1-EG05-AP6X-0.3-PSG3M     Manufacturer: Turck Banner
Inductive Sensor

Availability On Request

£130.56
  • Inductive Sensor
  • Operating Voltage: 10-30 VDC
  • Rated Switching Distance: 1 mm
  • Flush Type

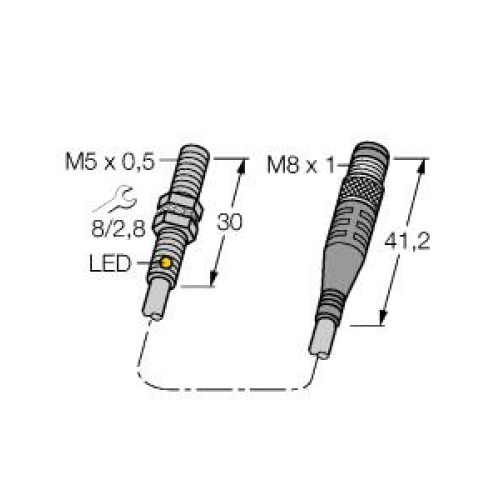

  • Threaded Barrel: M5 x 0.5, Stainless Steel 1.4427 SO
  • Cable Length: 0.3 m
  • DC 3-Wire
  • NO Contact
  • PNP Output
  • Pigtail with Male End: M8 x 1


Product

Manufacturer Material ID -
BI1-EG05-AP6X-0.3-PSG3M
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CH
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cylinder, screw-thread
Diameter sensor -
5 Millimetre
Housing material -
Metal
Length of sensor -
30 Millimetre
Mechanical mounting condition for sensor -
Concise
Supply voltage -
10 Volt
Switching distance -
1 Millimetre
Switching frequency -
3000 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable with connector
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Turck Banner

Availability On Request

£130.56
