1003040 {T}

Inductive Sensor, Operating voltage Nom. 8.2 VDC, Rated switching distance

Manufacturer's No: BI1-EH04-Y1     Manufacturer: Turck Banner
Inductive Sensor, Operating voltage Nom. 8.2 VDC, Rated switching distance

Availability Available to order

£64.80
  • Inductive Sensor
  • Rated switching distance: 1 mm
  • Flush mounting style

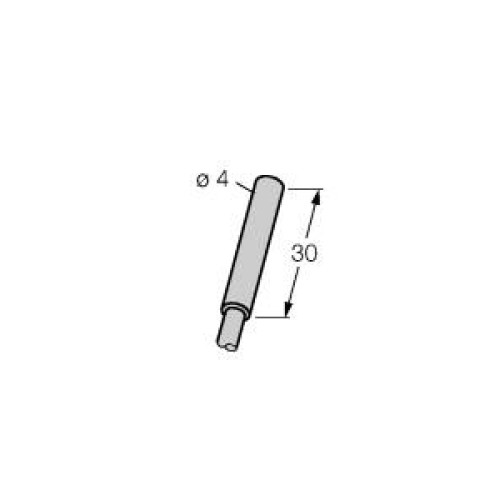

  • Smooth barrel with a diameter of 4 mm made of stainless steel (1.4427)
  • Cable length: 2 m
  • DC 2-wire sensor with a nominal voltage of 8.2 VDC
  • Output according to DIN EN 60947-5-6 (NAMUR)
  • Cable connection
  • ATEX category II 2 G for Ex Zone 1
  • ATEX category II 1 D for Ex Zone 20

Read more

  • SIL 2 (Low Demand Mode) according to IEC 61508, PL c according to ISO 13849-1 at HFT0
  • SIL 3 (All Demand Mode) according to IEC 61508, PL e according to ISO 13849-1 with redundant configuration HFT1


Product

Manufacturer Material ID -
BI1-EH04-Y1
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CH
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cylinder plain
Diameter sensor -
4 Millimetre
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 1D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 2G
Housing material -
Metal
Length of sensor -
30 Millimetre
Mechanical mounting condition for sensor -
Concise
Performance level acc. to EN ISO 13849-1 -
Level c
SIL according to IEC 61508 -
None
Suitable for safety functions -
Switching distance -
1 Millimetre
Switching frequency -
5000 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switching output -
NAMUR
Voltage type -
DC
Turck Banner

Availability Available to order

£64.80
