1533005

Inductive Sensor, With Analog Output

Manufacturer's No: BI1.5-EG05-0.3-M12-SIU-H1141     Manufacturer: Turck Banner
Inductive Sensor, With Analog Output

Availability On Request

£237.15
  • Inductive sensor with analog output
  • Operating voltage: 15-30 VDC
  • Measuring range: 0.1 mm - 1.5 mm

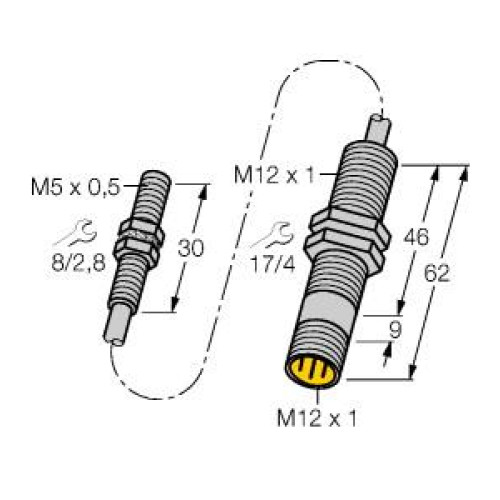

  • Flush type with threaded barrel (M5 x 0.5) made of stainless steel (1.4427 SO)
  • 4-wire configuration
  • Analog output options: 0-10 V and 0-20 mA
  • Cable length: 0.3 m with M12 x 1 connector


Product

Manufacturer Material ID -
BI1.5-EG05-0.3-M12-SIU-H1141
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Degree of protection (IP rating) -
IP67
Diameter sensor -
5 Millimetre
Housing material -
Stainless steel
Length of sensor -
30 Millimetre
Limiting frequency -
200 Hertz
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
0.1 Millimetre
Mechanical mounting condition for sensor -
Concise
Operating voltage -
15 Volt
Supply voltage -
15 Volt
Type of analogy output -
0 V ... 10 V
Type of electric connection -
Plug-in connection
Turck Banner

Availability On Request

£237.15
