1533004

Inductive Sensor, With Analog Output

Manufacturer's No: BI1.5-EG08-LU-H1341     Manufacturer: Turck Banner
Inductive Sensor, With Analog Output

Availability On Request

£193.80
  • Inductive sensor with analog output
  • Operating voltage: 15-30 VDC
  • Measuring range: 0.25 mm - 1.25 mm

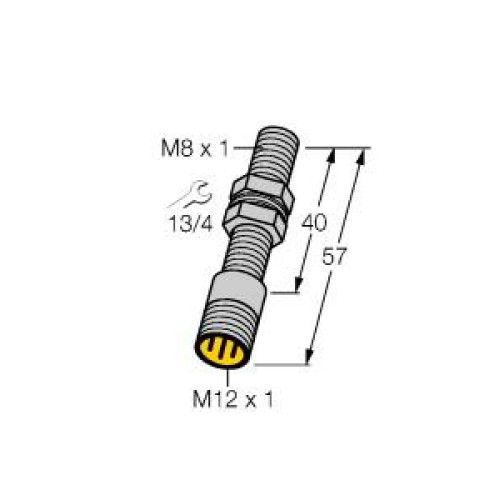

  • Flush, threaded barrel: M8 x 1, stainless steel 1.4427 SO
  • 3-wire connection
  • Analog output: 0-10 V
  • Connector: M12 x 1 male


Product

Manufacturer Material ID -
BI1.5-EG08-LU-H1341
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
PL
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Degree of protection (IP rating) -
IP67
Diameter sensor -
8 Millimetre
Housing material -
Stainless steel
Length of sensor -
57 Millimetre
Limiting frequency -
200 Hertz
Material active area of sensor -
Plastic
Measuring range length -
0.25 Millimetre
Mechanical mounting condition for sensor -
Concise
Operating voltage -
15 Volt
Relative linearity deflection -
3 Percentage
Supply voltage -
15 Volt
Type of analogy output -
0 V ... 10 V
Type of electric connection -
Plug-in connection
