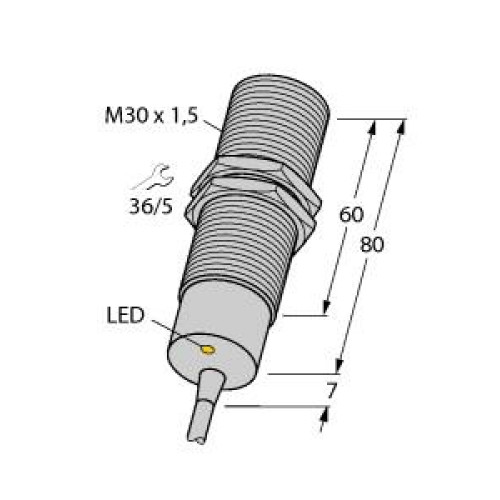

4316410

Inductive Sensor, With Increased Temperature Range

Manufacturer's No: BI10-M30-AZ3X/S120     Manufacturer: Turck Banner
Inductive Sensor, With Increased Temperature Range

Availability On Request

£222.87
  • Inductive sensor with increased temperature range
  • Operating voltage: 20-250 VAC
  • Rated switching distance: 10 mm
  • Flush mounting style
  • M30 x 1.5 threaded tube made of chrome-plated brass
  • Temperature range up to +120°C
  • AC 2-wire system
  • Normally open (NO) contact
  • Cable length: 2 meters
  • Suitable for temperatures ranging from 20°C to 120°C


Product

Manufacturer Material ID -
BI10-M30-AZ3X/S120
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Chrome plated
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
30 Millimetre
Housing material -
Metal
Length of sensor -
87 Millimetre
Mechanical mounting condition for sensor -
Concise
Supply voltage -
20 Volt
Switching distance -
10 Millimetre
Switching frequency -
20 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switch function -
Normally open contact
Voltage type -
AC
Turck Banner

Availability On Request

£222.87
