1341015 {T}

Inductive Sensor, With Extended Temperature Range, Operating voltage 20…250

Manufacturer's No: BI15-CP40-FZ3X2/S97     Manufacturer: Turck Banner
Inductive Sensor, With Extended Temperature Range, Operating voltage 20…250

Availability Available to order

£249.35
  • Inductive sensor
  • Extended temperature range: -40 °C
  • Operating voltage: 20-250 VAC / 10-300 VDC
  • Rated switching distance: 15 mm

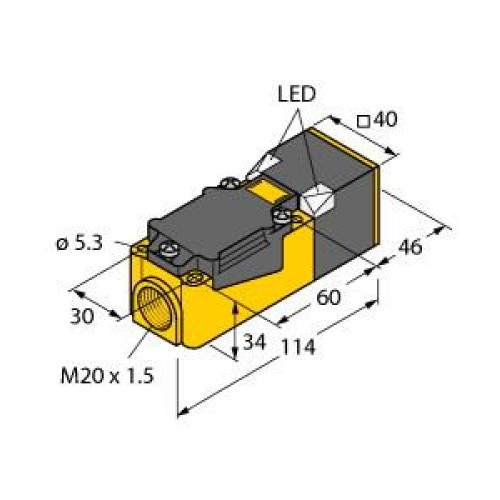

  • Flush, rectangular design with a height of 40 mm
  • Active face orientation adjustable in 9 directions
  • Material: Plastic (PBT-GF30-VO)
  • AC 2-wire: 20-250 VAC
  • DC 2-wire: 10-300 VDC
  • Programmable as NC/NO

Read more

  • Terminal chamber included


Product

Manufacturer Material ID -
BI15-CP40-FZ3X2/S97
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Other
Construction type housing -
Cuboid
Height of sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
114 Millimetre
Mechanical mounting condition for sensor -
Concise
Supply voltage -
20 Volt
Switching distance -
15 Millimetre
Switching frequency -
20 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Clamp
Type of switch function -
Programmable/configurable
Voltage type -
AC
Width sensor -
40 Millimetre
Turck Banner

Availability Available to order

£249.35
