1535534 {T}

Inductive Sensor, With Analog Output, Operating voltage 15…30 VDC

Manufacturer's No: BI2-M12-LIU     Manufacturer: Turck Banner
Inductive Sensor, With Analog Output, Operating voltage 15…30 VDC

Availability Available to order

£188.19
  • Inductive sensor with analog output
  • Operating voltage: 15-30 VDC
  • Measuring range: 1 mm - 2.5 mm
  • Flush type
  • Cable length: 2 m

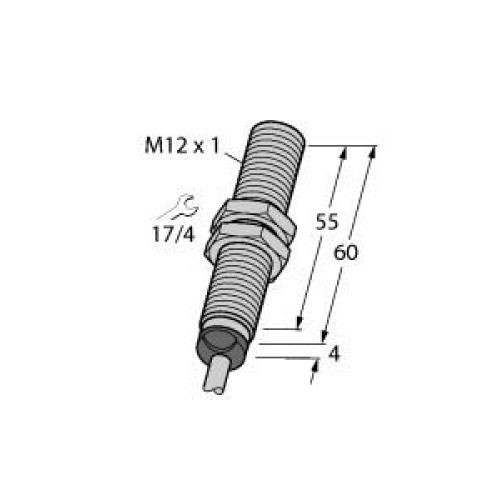

  • M12 × 1 threaded barrel made of chrome-plated brass
  • 4-wire configuration
  • Analog output options: 0-10 V and 0-20 mA
  • Cable connection


Product

Manufacturer Material ID -
BI2-M12-LIU
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Degree of protection (IP rating) -
IP67
Diameter sensor -
12 Millimetre
Housing material -
Other
Length of sensor -
64 Millimetre
Limiting frequency -
200 Hertz
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
1 Millimetre
Mechanical mounting condition for sensor -
Concise
Operating voltage -
15 Volt
Relative linearity deflection -
3 Percentage
Supply voltage -
15 Volt
Type of analogy output -
0 V ... 10 V
Type of electric connection -
Cable
Turck Banner

Availability Available to order

£188.19
