1302001

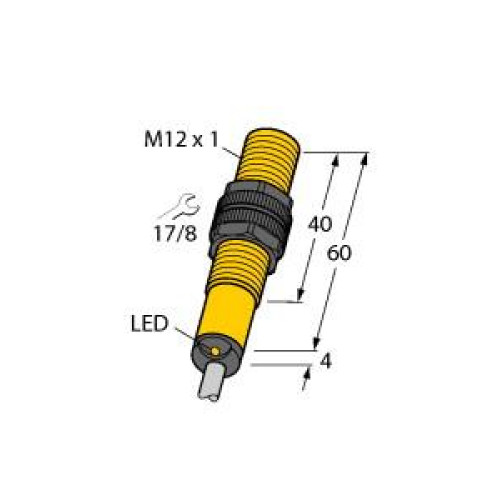

Inductive Sensor, With Increased Temperature Range

Manufacturer's No: BI2-S12-AZ31X/S100     Manufacturer: Turck Banner
Inductive Sensor, With Increased Temperature Range

Availability On Request

£216.50
  • Inductive sensor with increased temperature range
  • Operating voltage: 20-250 VAC / 10-300 VDC
  • Rated switching distance: 2 mm
  • Flush mounting style
  • Cable length: 2 m
  • Threaded barrel: M12 x 1
  • Material: Plastic (PA12-GF30)
  • Temperature range: Up to +100°C
  • Contact type: NO (Normally Open)
  • Cable connection

Read more

  • AC 2-wire: 20-250 VDC
  • DC 2-wire: 10-300 VDC


Product

Manufacturer Material ID -
BI2-S12-AZ31X/S100
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cylinder, screw-thread
Diameter sensor -
12 Millimetre
Housing material -
Plastic
Length of sensor -
60 Millimetre
Mechanical mounting condition for sensor -
Concise
Supply voltage -
20 Volt
Switching distance -
2 Millimetre
Switching frequency -
20 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switch function -
Normally open contact
Voltage type -
AC
Turck Banner

Availability On Request

£216.50
