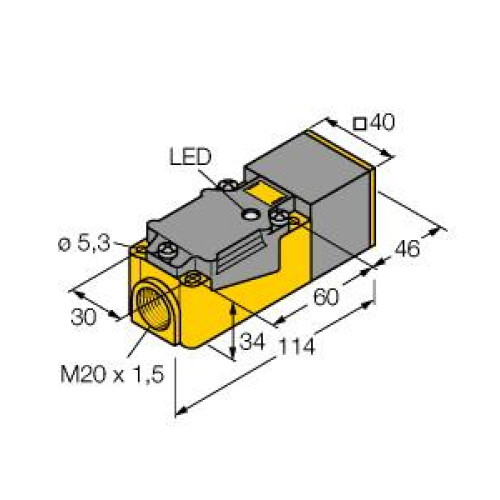

Inductive Sensor, With Switching Distance

Manufacturer's No: BI20-CP40-Y1X     Manufacturer: Turck Banner
Inductive Sensor, With Switching Distance

Availability On Request

POA
  • Inductive sensor with a rated switching distance of 20 mm
  • Rectangular flush design with a height of 40 mm
  • Active face orientation adjustable in 9 directions
  • Made of plastic material PBT-GF30-VO
  • Features high-luminance corner LEDs for visibility
  • Large coverage area for effective sensing
  • Operates on DC 2-wire system at nominal 8.2 VDC
  • Output according to DIN EN 60947-5-6 (NAMUR) standards
  • Equipped with a terminal chamber for easy installation
  • ATEX category II 2 G and ATEX category II 1 D certified for hazardous areas

Read more

  • Ex Zone 1 and Ex Zone 20 compliant
  • SIL 2 (Low Demand Mode) according to IEC 61508, PL c at HFT0
  • SIL 3 (All Demand Mode) according to IEC 61508, PL e with redundant configuration HFT1
  • Provides optimum view of operating voltage and switching state from any angle


Product

Manufacturer Material ID -
BI20-CP40-Y1X
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
41111926

Technical Specification

Coating housing -
Other
Construction type housing -
Cuboid
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 1D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 2G
Height of sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
114 Millimetre
Mechanical mounting condition for sensor -
Concise
Performance level acc. to EN ISO 13849-1 -
Level c
SIL according to IEC 61508 -
None
Suitable for safety functions -
Switching distance -
20 Millimetre
Switching frequency -
150 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Clamp
Type of switching output -
NAMUR
Voltage type -
DC
Width sensor -
40 Millimetre
