1580354 {T}

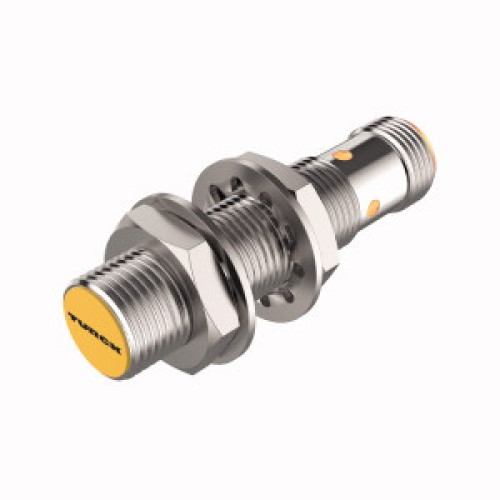

Inductive Sensor, Operating voltage 10…65 VDC, Rated switching distance

Manufacturer's No: BI3U-M12E-VN4X-H1141     Manufacturer: Turck Banner
Inductive Sensor, Operating voltage 10…65 VDC, Rated switching distance

Availability Available to order

£109.62
  • Inductive Sensor
  • Operating Voltage: 10-65 VDC
  • Rated Switching Distance: 3 mm
  • Flush, M12 x 1 Threaded Barrel, Long Version, Chrome-plated Brass
  • Factor 1 for all metals
  • Protection Class: IP68
  • Resistant to magnetic fields
  • Extended temperature range
  • High switching frequency
  • DC 4-wire, 10-65 VDC

Read more

  • Changeover contact, NPN output
  • M12 x 1 Male Connector


Product

Manufacturer Material ID -
BI3U-M12E-VN4X-H1141
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Chrome plated
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
12 Millimetre
Housing material -
Metal
Length of sensor -
62 Millimetre
Mechanical mounting condition for sensor -
Concise
Supply voltage -
10 Volt
Switching distance -
3 Millimetre
Switching frequency -
3000 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Change-over contact
Type of switching output -
NPN
Voltage type -
DC
