1535532

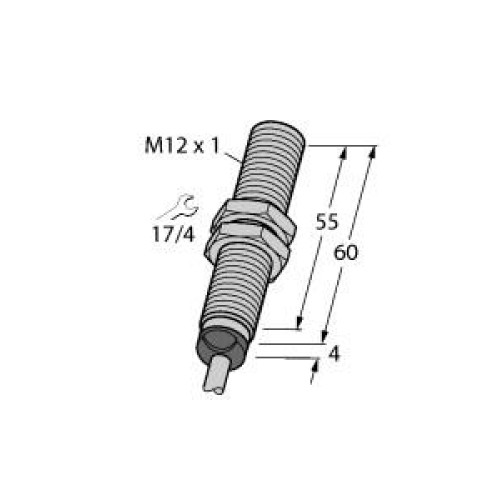

Inductive Sensor, With Analog Output

Manufacturer's No: BI4-M12-LIU     Manufacturer: Turck Banner
Inductive Sensor, With Analog Output

Availability On Request

£195.84
  • Inductive sensor with analog output
  • Operating voltage: 15-30 VDC
  • Measuring range: 0.5 mm to 3 mm
  • Flush type sensor with M12 x 1 threaded barrel
  • Material: Chrome-plated brass
  • 4-wire sensor with cable length of 2 m
  • Analog output options: 0-10 V and 0-20 mA


Product

Manufacturer Material ID -
BI4-M12-LIU
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cylinder, screw-thread
Degree of protection (IP rating) -
IP67
Diameter sensor -
12 Millimetre
Housing material -
Other
Length of sensor -
64 Millimetre
Limiting frequency -
200 Hertz
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
0.5 Millimetre
Mechanical mounting condition for sensor -
Concise
Operating voltage -
15 Volt
Relative linearity deflection -
5 Percentage
Supply voltage -
15 Volt
Type of analogy output -
0 V ... 10 V
Type of electric connection -
Cable
Turck Banner

Availability On Request

£195.84
