4054000 {T}

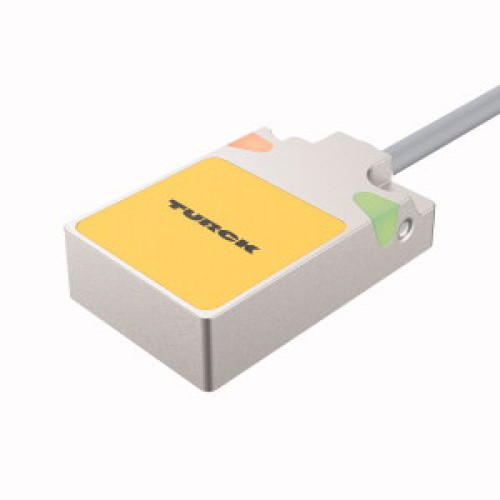

Inductive Sensor, Operating voltage Nom. 8.2 VDC, Rated switching distance

Manufacturer's No: BI5-Q08-Y1X     Manufacturer: Turck Banner
Inductive Sensor, Operating voltage Nom. 8.2 VDC, Rated switching distance

Availability Available to order

£72.09
  • Inductive Sensor
  • Rated switching distance: 5 mm
  • Flush mounting
  • Cable length: 2 m
  • Rectangular shape, height: 8 mm
  • Active face on top
  • Material: Metal (Zamak), nickel-plated
  • DC 2-wire, nominal voltage: 8.2 VDC
  • Output according to DIN EN 60947-5-6 (NAMUR)
  • Cable connection

Read more

  • ATEX category II 2 G, Ex Zone 1
  • ATEX category II 1 D, Ex Zone 20
  • SIL 2 (Low Demand Mode) according to IEC 61508, PL c according to ISO 13849-1 at HFT0
  • SIL 3 (All Demand Mode) according to IEC 61508, PL e according to ISO 13849-1 with redundant configuration HFT1


Product

Manufacturer Material ID -
BI5-Q08-Y1X
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
82032000
Country of Origin -
SE
UNSPSC -
31261502

Technical Specification

Length -
198 Millimetre
Number of included inserts -
0
AWG-range -
24
Coating housing -
Nickel-plated
Compression shape -
Trapezoid compression
Construction type housing -
Cuboid
Construction/operation -
Mechanical
Cross section -
1 Square millimetre
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 1D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 2G

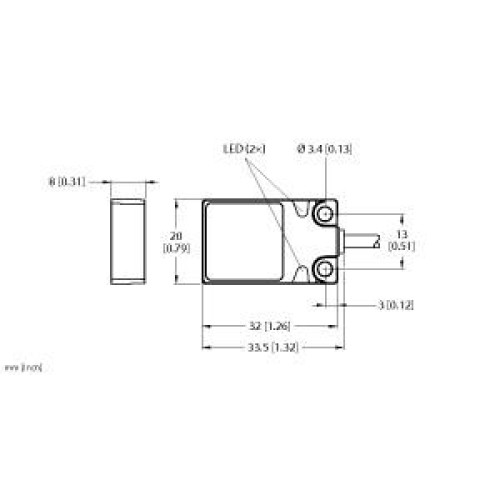

Height of sensor -
8 Millimetre
Housing material -
Metal
Length of sensor -
32 Millimetre
Mechanical mounting condition for sensor -
Concise
Performance level acc. to EN ISO 13849-1 -
Level c
SIL according to IEC 61508 -
None
Suitable for -
Other
Suitable for safety functions -
Switching distance -
5 Millimetre
Switching frequency -
1000 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switching output -
NAMUR
Voltage type -
DC
Width sensor -
20 Millimetre
With locking device (for mechanical tools) -
Turck Banner

Availability Available to order

£72.09
