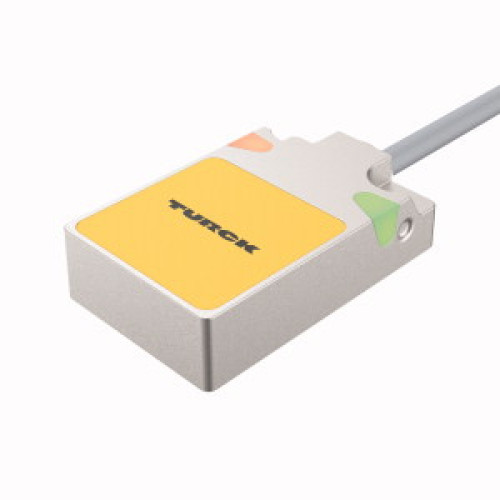

Inductive Sensor, With Analog Output, Operating voltage 15…30 VDC

Manufacturer's No: BI7-Q08-LIU     Manufacturer: Turck Banner
Inductive Sensor, With Analog Output, Operating voltage 15…30 VDC

Availability Available to order

£175.64
  • Inductive sensor with analog output
  • Operating voltage: 15-30 VDC
  • Measuring range: 1mm to 4mm
  • Flush type with rectangular shape, height of 8mm
  • Active face on top
  • Material: Nickel-plated Zamak
  • 4-wire sensor
  • Analog output: 0-10 V and 0-20 mA
  • Cable length: 2m
  • Cable connection


Product

Manufacturer Material ID -
BI7-Q08-LIU
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CH
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP68

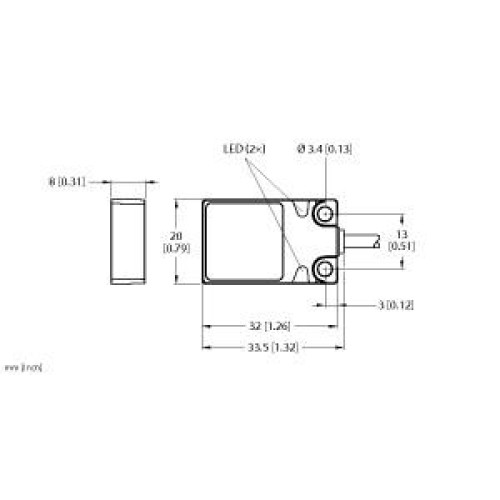

Height of sensor -
8 Millimetre
Housing material -
Other
Length of sensor -
32 Millimetre
Limiting frequency -
200 Hertz
Material active area of sensor -
Plastic
Material of cable sheath -
Polyurethane (PUR)
Measuring range length -
1 Millimetre
Mechanical mounting condition for sensor -
Concise
Operating voltage -
15 Volt
Relative linearity deflection -
5 Percentage
Supply voltage -
15 Volt
Type of analogy output -
0 V ... 10 V
Type of electric connection -
Cable
Width sensor -
20 Millimetre
Turck Banner

Availability Available to order

£175.64
