1SVR470670R1100

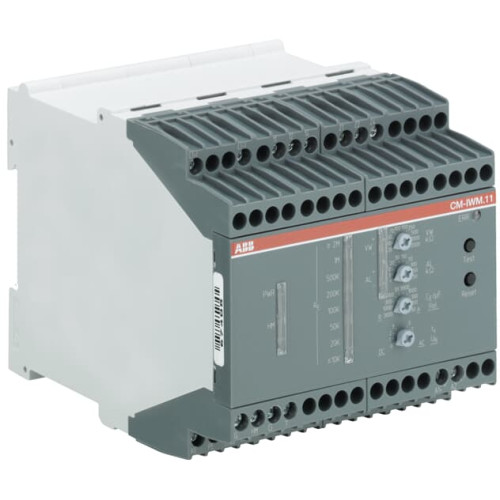

CM-IWM.11 Insulation monitoring relay 2c/o, 1-250kOhm,0.02-20MOhm, 24VDC

Manufacturer's No: CM-IWM.11     Manufacturer: ABB
CM-IWM.11 Insulation monitoring relay 2c/o, 1-250kOhm,0.02-20MOhm, 24VDC

Availability Available to order

£2,598.26
  • Model: CM-IWM.11
  • Insulation monitoring relay with 2 changeover contacts (2c/o)
  • Measurement range: 1-250 kOhm, 0.02-20 MOhm
  • Operating voltage: 24VDC
  • System leakage capacitance up to 3000 µF for modern IT systems
  • Suitable for AC, DC, and AC/DC systems, including those with large leakage capacity to earth (PE)
  • Easy adjustment of setting values using 2 rotary switches on the front
  • LED indicators for measured value, device parameters, and device status


Product

Manufacturer Material ID -
CM-IWM.11
Net Weight -
0.50kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Response value impedance 2 -
- Kilo-Ohm
Rated voltage -
0 Volt
Rated control supply voltage Us at DC -
24 Volt
Width -
90 Millimetre
Function -
For mixed system
Height -
90 Millimetre
Depth -
121 Millimetre
Rated frequency -
16 Hertz
Line capacity -
3000 Micro-Farad
Indication of insulation value -
Error registration possible -
Type of electric connection -
Screw connection
Rated control supply voltage at DC -
24 Volt
Response value impedance 1 -
20 Kilo-Ohm
Voltage type for actuating -
DC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
2
External power supply required -
Operating voltage at AC 50 Hz -
230 Volt
Operating voltage at AC 60 Hz -
230 Volt
Rated operation frequency -
16 Hertz
Supply voltage DC -
24 Volt
Voltage measurement range -
0 Volt
Voltage type (operating voltage) -
AC
Voltage type of supply voltage -
DC
ABB

Availability Available to order

£2,598.26
