1SVR405601R1000

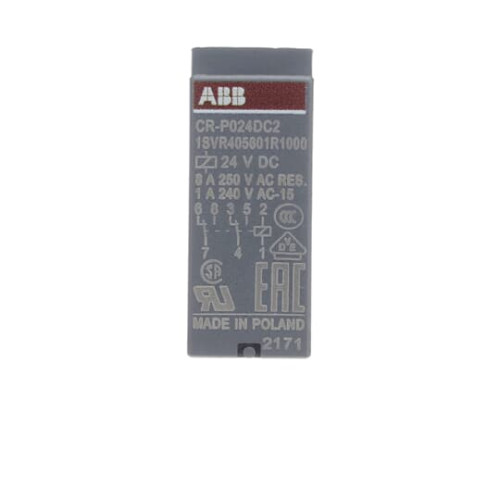

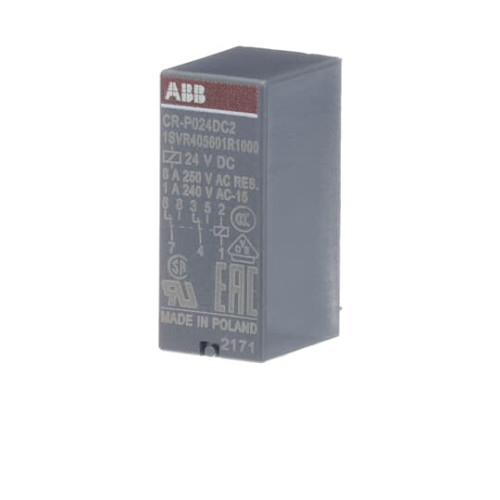

CR-P024DC2 Pluggable interface relay 2c/o, A1-A2=24VDC, 250V/8A

Manufacturer's No: CR-P024DC2     Manufacturer: ABB
CR-P024DC2 Pluggable interface relay 2c/o, A1-A2=24VDC, 250V/8A

Availability On Request

£4.51
  • Model: CR-P024DC2 Pluggable Interface Relay
  • Configuration: 2 c/o (SPDT)
  • Control Supply Voltage: 24 V DC
  • Contact Rating: 250V / 8A
  • Compact size suitable for direct mounting on a PCB or with ABB's sockets
  • Enables switching multiple circuits with a single input signal
  • IP67 rating for complete protection against dust, airborne particles, water, and immersion up to one meter
  • Accessories available: standard sockets, logical sockets, pluggable function modules, holder, and marker


Product

Manufacturer Material ID -
CR-P024DC2
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
PL
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
0 Volt
Rated control supply voltage Us at AC 60HZ -
0 Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP67
Degree of protection (IP rating) -
IP67
Depth -
29 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
15.7 Millimetre
Material contact -
Silver nickel (AgNi)
Material of contact surface -
Other
Nominal current -
8 Ampere
Number of contacts as change-over contact -
2
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Operating voltage at AC 50 Hz -
400 Volt
Operating voltage at AC 60 Hz -
400 Volt
Rated control supply voltage at DC -
24 Volt
Relay technology category according to IEC 61810-7 -
RT I
Type of electric connection -
Soldering flag connection
Type of switch contact -
Single contact
Voltage type (operating voltage) -
AC/DC
Voltage type for actuating -
DC
Width -
12.7 Millimetre
