3072808

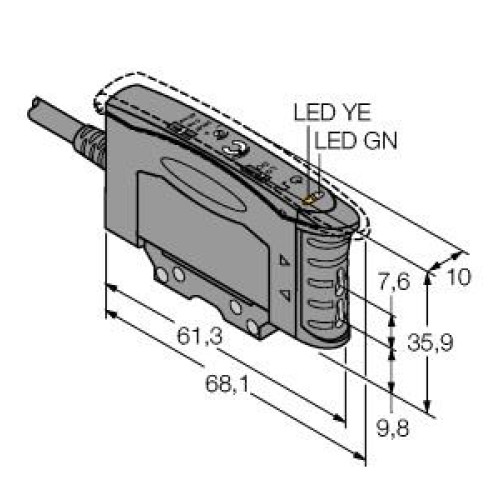

D10 AFP Sensor for use with Plastic Fiber Optics, Range: Depends on Fiber, Input 10-30 V dc, Output: Bipolar 2 m (6.5 ft) Cable

Manufacturer's No: D10AFP     Manufacturer: Turck Banner
D10 AFP Sensor for use with Plastic Fiber Optics, Range: Depends on Fiber, Input 10-30 V dc, Output: Bipolar 2 m (6.5 ft) Cable

Availability On Request

£127.94
  • Photoelectric sensor for plastic fibers
  • Operating voltage: 10-30 VDC
  • Cable length: 2 meters
  • Light/dark operation with red visible light
  • Switch-off delay: 40 ms (selectable)
  • Max. switching frequency: 1 kHz
  • Sensitivity adjusted via 12-turn potentiometer


Product

Manufacturer Material ID -
D10AFP
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP50
Height amplifier -
35.9 Millimetre
Housing material -
Plastic
Length amplifier -
68.1 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
No load current -
25 Milliampere
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width amplifier -
10 Millimetre
Turck Banner

Availability On Request

£127.94
