D10 Series Expert: Bargraph Display Discrete, Range: Depends on Fiber, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5

Manufacturer's No: D10BFP     Manufacturer: Turck Banner
D10 Series Expert: Bargraph Display Discrete, Range: Depends on Fiber, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable

Availability On Request

£171.49
  • Photoelectric sensor for plastic fibers
  • Operating voltage: 10-30 VDC
  • Cable length: 2 meters
  • 8-segment LED display
  • Adjustable response time
  • Light/dark operation
  • Teach programming feature
  • Visible red light
  • Selectable 30 ms switch-off delay


Product

Manufacturer Material ID -
D10BFP
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP50

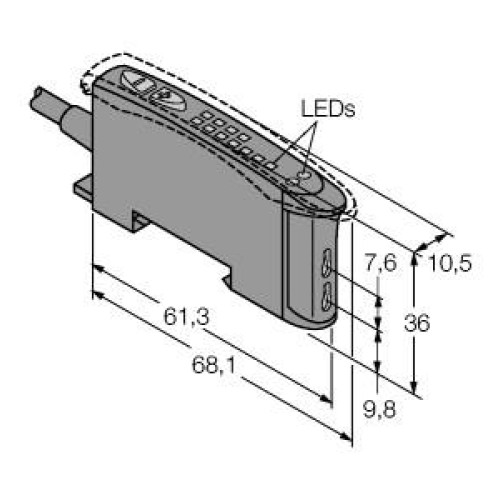

Height amplifier -
35.9 Millimetre
Housing material -
Plastic
Length amplifier -
68.1 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
No load current -
45 Milliampere
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width amplifier -
10.5 Millimetre
Turck Banner

Availability On Request

£171.49
