3072614

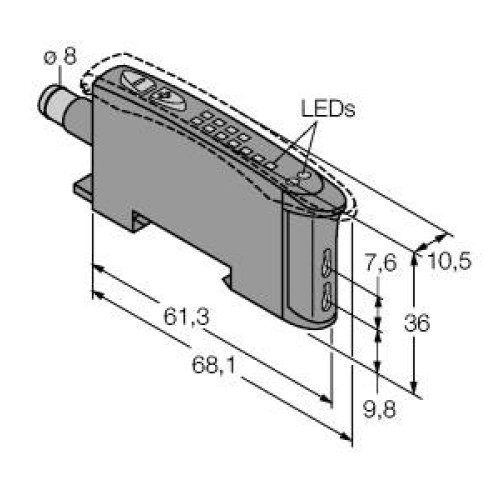

D10BFPQ Sensor for use with Plastic Fiber Optics, Range: Depends on Fiber, Input 10-30 V dc, Output: Bipolar 6-pin M8 QD

Manufacturer's No: D10BFPQ     Manufacturer: Turck Banner
D10BFPQ Sensor for use with Plastic Fiber Optics, Range: Depends on Fiber, Input 10-30 V dc, Output: Bipolar 6-pin M8 QD

Availability On Request

£171.49
  • Type: Photoelectric Sensor for Plastic Fibers
  • Operating Voltage: 10-30 VDC
  • Male 8 mm, 6-pin, snap-lock connector
  • 8-segment LED display
  • Response Time: Adjustable
  • Light/Dark Operation
  • Teach Programming feature
  • Visible Red Light
  • Selectable 30 ms Switch-off Delay


Product

Manufacturer Material ID -
D10BFPQ
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP50
Height amplifier -
35.9 Millimetre
Housing material -
Plastic
Length amplifier -
84.4 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
No load current -
45 Milliampere
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width amplifier -
10.5 Millimetre
Turck Banner

Availability On Request

£171.49
