73406 {B}

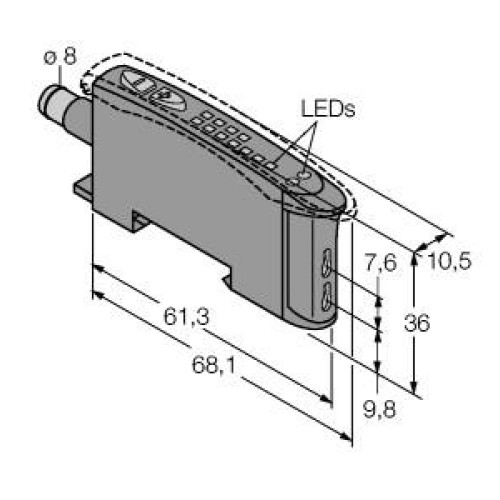

D10BFPQ5 QD 5-PIN M12 RED

Manufacturer's No: D10BFPQ5     Manufacturer: Turck Banner
D10BFPQ5 QD 5-PIN M12 RED

Availability Available to order

£176.31
  • Type: Photoelectric Sensor for Plastic Fibers
  • Operating Voltage: 10-30 VDC
  • Male 8 mm, 6-pin, snap-lock connector
  • 8-segment LED display
  • Response Time: Adjustable
  • Light/Dark Operation
  • Teach Programming feature
  • Visible Red Light
  • Selectable 30 ms Switch-off Delay


Product

Manufacturer Material ID -
D10BFPQ5
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP50
Height amplifier -
35.9 Millimetre
Housing material -
Plastic
Length amplifier -
84.4 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
No load current -
45 Milliampere
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width amplifier -
10.5 Millimetre
Turck Banner

Availability Available to order

£176.31
