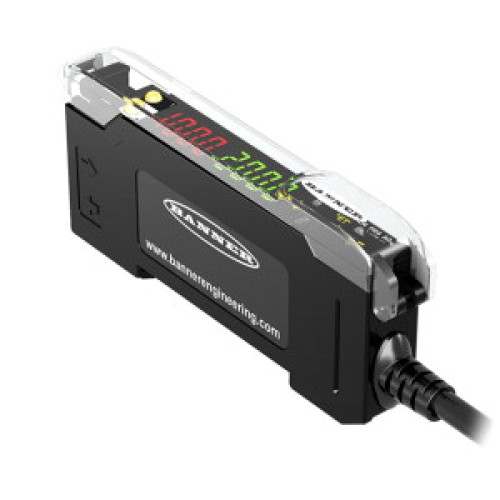

DF-G1 Dual Display Fiber Amplifier, Range: Depends on Fiber, Input 10-30 V dc, Output: Push/Pull with IO-Link, 2 m (6.5 ft) Cable

Manufacturer's No: DF-G1-KS-2M     Manufacturer: Turck Banner
DF-G1 Dual Display Fiber Amplifier, Range: Depends on Fiber, Input 10-30 V dc, Output: Push/Pull with IO-Link, 2 m (6.5 ft) Cable

Availability On Request

£186.01
  • Type: Photoelectric Sensor for Plastic Fibers
  • Operating Voltage: 10-30 VDC
  • Cable Length: 2 meters
  • Light Source: Visible Red Light
  • Programming: Teach Cable or Multi-function Button
  • Output: 2 x PNP Output, Changeover Contact
  • Special Feature: IO-Link Support
  • Operation Mode: Light/Dark Operation


Product

Manufacturer Material ID -
DF-G1-KS-2M
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP50
Height amplifier -
33 Millimetre
Housing material -
Plastic
Length amplifier -
79.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Width amplifier -
10 Millimetre
Turck Banner

Availability On Request

£186.01
