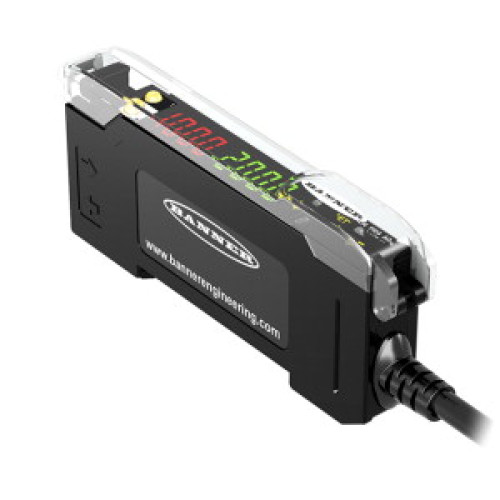

DF-G1 Dual Display Fiber Amplifier, Range: Depends on Fiber, Input 18-30 V dc, Output 1: Push/Pull with IO-Link, Output 2: PNP onl

Manufacturer's No: DF-G1-KS-Q5     Manufacturer: Turck Banner
DF-G1 Dual Display Fiber Amplifier, Range: Depends on Fiber, Input 18-30 V dc, Output 1: Push/Pull with IO-Link, Output 2: PNP only, 150 (6 in) 4-pin M12 Pigtail QD

Availability Available to order

£208.20
  • Photoelectric sensor for plastic fibers
  • Operating voltage: 10-30 VDC
  • Cable length: 0.15 m, with male end M12x1
  • Visible red light
  • Programming via teach cable or multi-function button
  • IO-Link compatible
  • 2 x PNP output with changeover contact
  • Light/dark operation


Product

Manufacturer Material ID -
DF-G1-KS-Q5
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP50

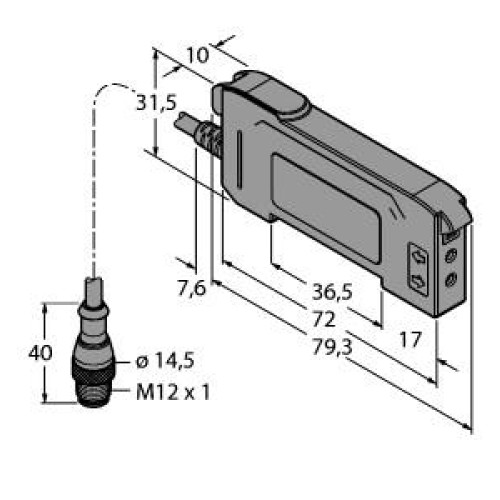

Height amplifier -
33 Millimetre
Housing material -
Plastic
Length amplifier -
79.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Width amplifier -
10 Millimetre
