3019359

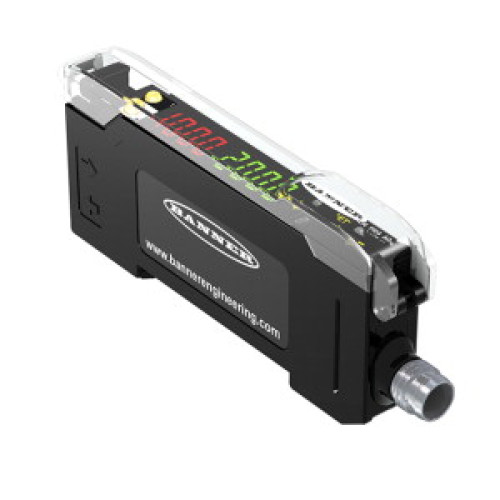

DF-G1 Dual Display Fiber Amplifier, Range: Depends on Fiber, Input 10-30 V dc, Output: 1 PNP, 4-pin M8 Integral QD

Manufacturer's No: DF-G1-PS-Q7     Manufacturer: Turck Banner
DF-G1 Dual Display Fiber Amplifier, Range: Depends on Fiber, Input 10-30 V dc, Output: 1 PNP, 4-pin M8 Integral QD

Availability On Request

£166.95
  • Photoelectric sensor for plastic fibers
  • Operating voltage: 10-30 VDC
  • 8 mm connector, 4-pin
  • Visible red light
  • Programming via teach cable or multi-function button
  • PNP output
  • Light/dark operation


Product

Manufacturer Material ID -
DF-G1-PS-Q7
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP50
Height amplifier -
33 Millimetre
Housing material -
Plastic
Length amplifier -
79.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Width amplifier -
10 Millimetre
Turck Banner

Availability On Request

£166.95
