3097700

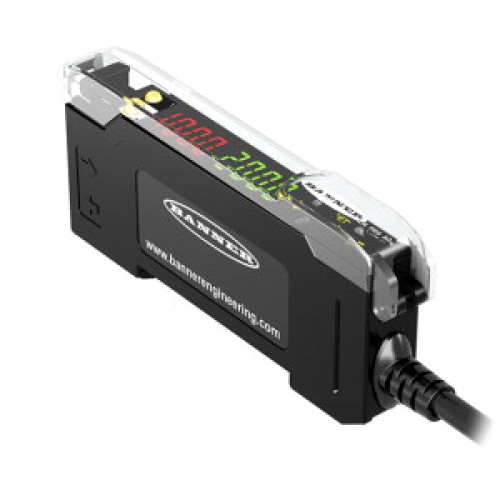

DF-G2 Red Beam High Speed Dual Display Fiber Amplifier, Range: Depends on Fiber, Input 10-30 V dc, Output 1: Push/Pull with IO-Lin

Manufacturer's No: DF-G2-KD-2M     Manufacturer: Turck Banner
DF-G2 Red Beam High Speed Dual Display Fiber Amplifier, Range: Depends on Fiber, Input 10-30 V dc, Output 1: Push/Pull with IO-Link, Output 2: PNP only, 4-conductor 2 m PVC Cable

Availability On Request

£231.38
  • Type: Photoelectric Sensor for Plastic Fibers
  • Operating Voltage: 10-30 VDC
  • Cable Length: 2 meters
  • Light Type: Visible Red Light
  • Programming: Teach Cable or Multi-function Button
  • Output: 2 x PNP Output with Changeover Contact
  • Additional Features: IO-Link, Light/Dark Operation


Product

Manufacturer Material ID -
DF-G2-KD-2M
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP50

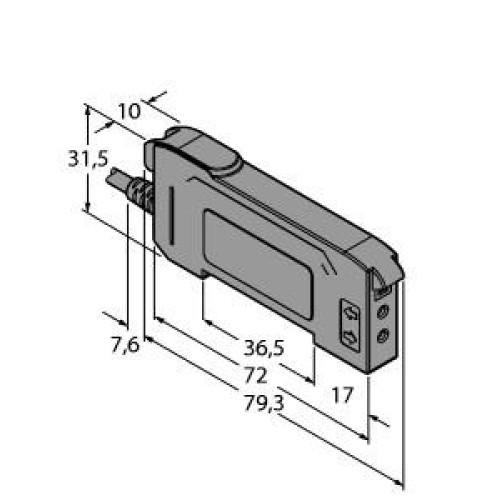

Height amplifier -
33 Millimetre
Housing material -
Plastic
Length amplifier -
79.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Width amplifier -
10 Millimetre
Turck Banner

Availability On Request

£231.38
