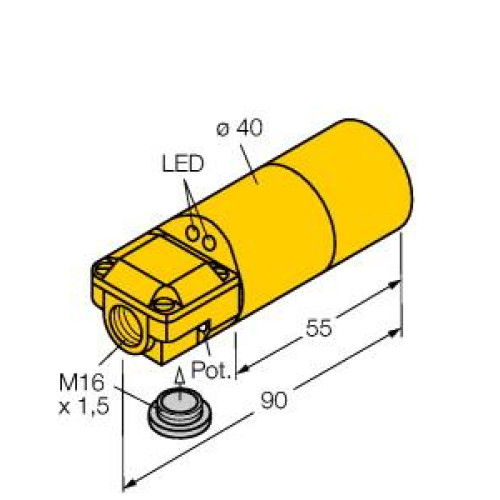

1500202 {T}

Inductive Sensor, Rotation speed monitor, Operating voltage 10…65 VDC

Manufacturer's No: DNI30U-K40SR-AP4X2     Manufacturer: Turck Banner
Inductive Sensor, Rotation speed monitor, Operating voltage 10…65 VDC

Availability Available to order

£323.19
  • Inductive Sensor
  • Rotation speed monitor
  • Operating voltage: 10 to 65 VDC
  • Rated switching distance: 30 mm
  • Large monitoring range: 60 to 3000 RPM
  • Smooth barrel, Ø 40 mm, Plastic (ABS)
  • 2 cable entries (axial, radial)
  • Fixed start-up time delay: 5 s
  • Switchpoint adjustable via potentiometer
  • Factor 1 for all metals

Read more

  • Resistant to magnetic fields
  • DC 3-wire, 10 to 65 VDC
  • NO contact, PNP output
  • Terminal chamber


Product

Manufacturer Material ID -
DNI30U-K40SR-AP4X2
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Other
Construction type housing -
Cylinder plain
Diameter sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
90 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
30 Millimetre
Type of actuation -
Metallic Target
Type of electric connection -
Clamp
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Turck Banner

Availability Available to order

£323.19
