1582230

Inductive Sensor, Rotation speed monitor

Manufacturer's No: DTBI10U-M30-AP4X2     Manufacturer: Turck Banner
Inductive Sensor, Rotation speed monitor

Availability On Request

£268.77
  • Inductive Sensor
  • Rotation speed monitor
  • Operating voltage: 10 to 65 VDC
  • Rated switching distance: 10 mm
  • Large monitoring range: 3 to 3000 rpm

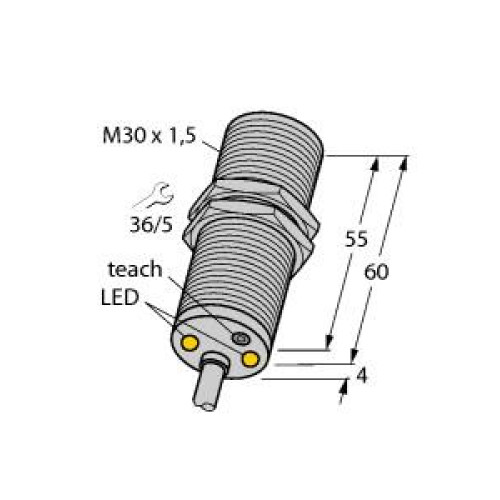

  • Flush type with M30 × 1.5 threaded tube
  • Chrome-plated brass material
  • Adjustable via pushbutton [T]
  • Fixed start-up time delay: 5 s
  • Resistant to magnetic fields

Read more

  • DC 3-wire, NO contact, PNP output
  • Cable length: 2 m
  • Cable connection


Product

Manufacturer Material ID -
DTBI10U-M30-AP4X2
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Chrome plated
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
30 Millimetre
Housing material -
Metal
Length of sensor -
64 Millimetre
Mechanical mounting condition for sensor -
Concise
Supply voltage -
10 Volt
Switching distance -
10 Millimetre
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Turck Banner

Availability On Request

£268.77
