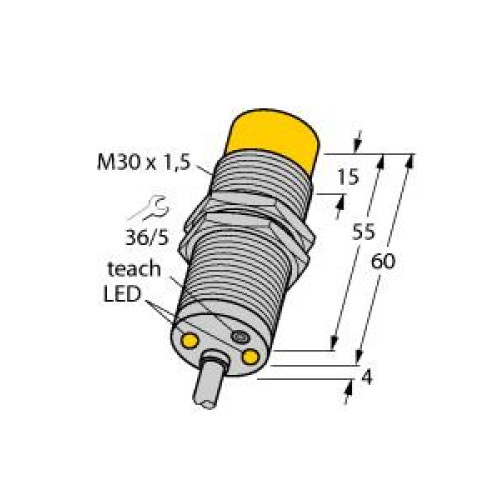

Inductive Sensor, Rotation speed monitor

Manufacturer's No: DTNI20U-M30-AP4X2     Manufacturer: Turck Banner
Inductive Sensor, Rotation speed monitor

Availability On Request

£268.77
  • Inductive Sensor
  • Rotation speed monitor
  • Operating voltage: 10-65 VDC
  • Rated switching distance: 20 mm
  • Non-flush
  • M30 x 1.5 threaded tube, chrome-plated brass
  • Large monitoring range: 3 to 3000 1/min
  • Adjustable via pushbutton [T]
  • Fixed start-up time delay: 5 s
  • Resistant to magnetic fields

Read more

  • DC 3-wire, 10-65 VDC
  • NO contact, PNP output
  • Cable length: 2 m
  • Cable connection


Product

Manufacturer Material ID -
DTNI20U-M30-AP4X2
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Chrome plated
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
30 Millimetre
Housing material -
Metal
Length of sensor -
64 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
20 Millimetre
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Turck Banner

Availability On Request

£268.77
