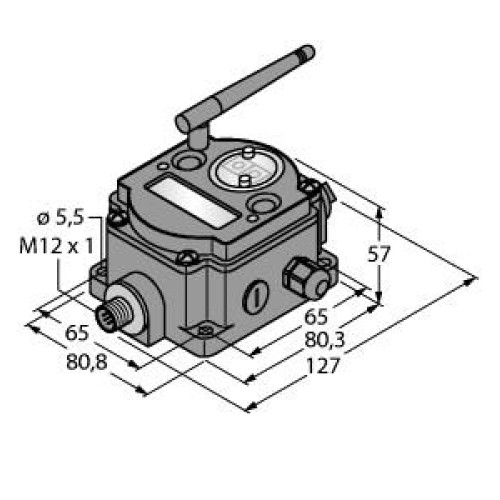

DX80 Perf 2.4 GHz Gateway 65 mW IP67, Flex Ext Antenna RS485, Up to 12 Disc NPN IO

Manufacturer's No: DX80G2M2S-P7     Manufacturer: Turck Banner
DX80 Perf 2.4 GHz Gateway 65 mW IP67, Flex Ext Antenna RS485, Up to 12 Disc NPN IO

Availability On Request

£649.84
  • Radio Transmission System with Star Topology
  • Performance Gateway (FlexPower)
  • Operating voltage: 3.6 to 5.5 VDC
  • Max. range: 3200000 mm
  • External antenna with RG58 RP-SMA connection
  • Integrated signal strength indicator
  • Configuration via DIP switch
  • Modbus RTU communication with RS485 interface
  • Deterministic data transmission
  • Frequency hopping FHSS and Time Division Multiplex Access TDMA

Read more

  • Transmission power: 63 mW (18 dBm conducted, ? 20 dBm EIRP)
  • Alternative register assignment
  • Inputs: up to 12 x NPN
  • Outputs: up to 12 x NMOS
  • Max. 12 inputs and outputs


Product

Manufacturer Material ID -
DX80G2M2S-P7
Net Weight -
0.59kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
US
UNSPSC -
32151701
Turck Banner

Availability On Request

£649.84
