3026110

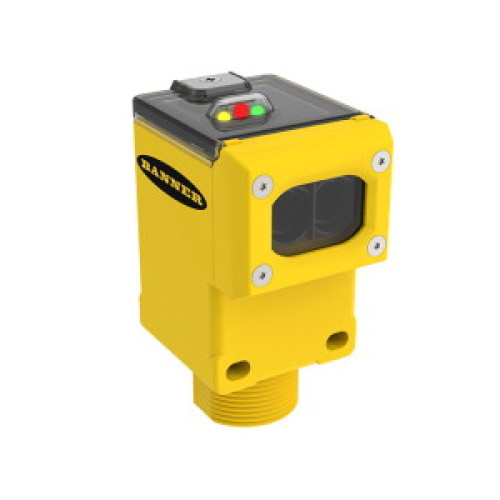

Wireless Q45 Photoelectric Sensor, Retroreflective 2.4 GHz 65 mW

Manufacturer's No: DX80N2Q45LP     Manufacturer: Turck Banner
Wireless Q45 Photoelectric Sensor, Retroreflective 2.4 GHz 65 mW

Availability On Request

POA
  • Radio Transmission System with Star Topology
  • Node with Integrated Sensor (Integrated retroreflective sensor, red light, polarized)
  • Operating voltage: 3.6 - 5.5 VDC
  • Max. range: 6000 mm
  • Protection class: IP67
  • Mechanical screw-in thread: M30 x 1.5
  • Focal distance: 6 m
  • Frequency band: 2.4 GHz
  • Frequency hopping FHSS
  • Time division multiplex access (TDMA)

Read more

  • Current consumption: ? 100 µA
  • Power supply: 2x 3.6 V Li-ion AA batteries (included)
  • FCC-ID: UE300DX80-2400
  • Compliance with FCC para. 15, sub para. C, 15.247 ETSI/EN: EN 300 328: V1.7.1 (2006-05) IC: 7044A-DX8024
  • Radiation protection: 10 V/m for 80-2700 MHz according to EN 61000-6-2


Product

Manufacturer Material ID -
DX80N2Q45LP
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
32151701
