50130454

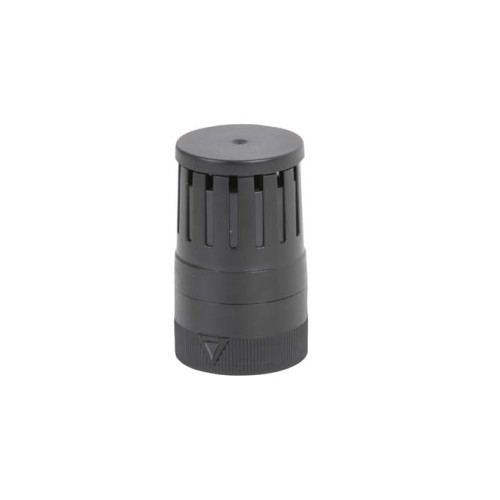

The Signaling column element from . Signaling: Acoustic; Supply voltage: 24 V, AC/DC; Current consumption, max.: 39 mA; Design: Cy

Manufacturer's No: E4-V1-BZ1     Manufacturer: Leuze
The Signaling column element from . Signaling: Acoustic; Supply voltage: 24 V, AC/DC; Current consumption, max.: 39 mA; Design: Cylindrical; Diameter: 40 mm; Fastening: Bayonet system; Operational c

Availability Back Order

£45.00
  • Signaling: Acoustic
  • Design: Cylindrical with a diameter of 40 mm
  • Fastening: Bayonet system
  • Operational controls: DIP switch
  • Ambient temperature: -30 to 60 °C
  • Degree of protection: IP66
  • Tone type: Continuous or pulse tone
  • Sound pressure: 80 dB
  • Current consumption: 39 mA maximum
  • Number of tones: 1 piece

Accessories



Product

Manufacturer Material ID -
E4-V1-BZ1
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85318070
Country of Origin -
AT
UNSPSC -
32151500

Technical Specification

Operating voltage at AC 50 Hz -
- Volt
Operating voltage at AC 60 Hz -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP66
Loudness -
80 Decibel
Thumbnail of product picture -
Colour -
Other
Degree of protection (IP rating) -
IP66
Function -
Continuous tone/pulse tone
Operating voltage at DC -
24 Volt
Outer diameter -
40 Millimetre
Sound level -
80 Decibel
Voltage type -
DC
Leuze

Availability Back Order

£45.00
