50130434

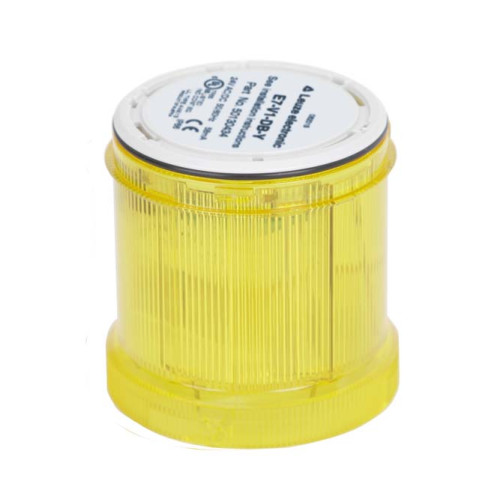

The Signaling column element from . Signaling: Optical; Supply voltage: 24 V, AC/DC; Current consumption, max.: 58 mA; Design: Cyl

Manufacturer's No: E7-V1-DB-Y     Manufacturer: Leuze
The Signaling column element from . Signaling: Optical; Supply voltage: 24 V, AC/DC; Current consumption, max.: 58 mA; Design: Cylindrical; Diameter: 70 mm; Fastening: Bayonet system; Illuminant: LE

Availability Back Order

£48.00
  • Signaling: Optical
  • Supply Voltage: 24 V (AC/DC)
  • Current Consumption: 58 mA (max)
  • Design: Cylindrical with a Diameter of 70 mm
  • Fastening: Bayonet system
  • Illuminant: LED/24V
  • Signal Image: Flashing light
  • Lens Color: Yellow
  • Angle of Radiation: 360°
  • Ambient Temperature: -30 to 60 °C

Read more

  • Degree of Protection: IP 66

Accessories



Product

Manufacturer Material ID -
E7-V1-DB-Y
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85318070
Country of Origin -
AT
UNSPSC -
32151500

Technical Specification

Colour housing -
UN
Lamp type -
UN
Operating voltage at DC -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP66
Colour -
Yellow
Degree of protection (IP rating) -
IP66
Function -
Blinker light
Housing colour -
Black
Light source type -
LED
Operating voltage at AC 50 Hz -
24 Volt
Operating voltage at AC 60 Hz -
24 Volt
Outer diameter -
70 Millimetre
Voltage type -
AC/DC
Thumbnail of product picture -
Leuze

Availability Back Order

£48.00
