3075429

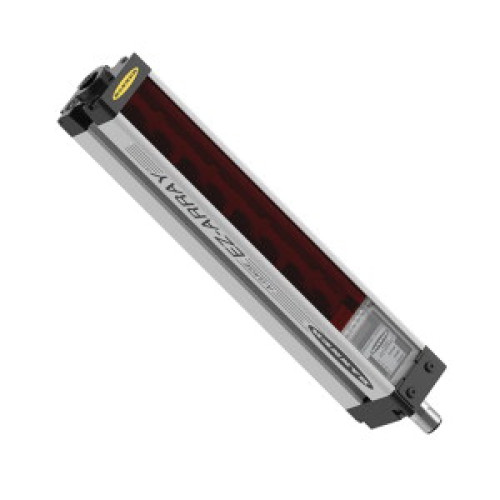

EA5E1050Q EZ-ARRAY 5 OPTICAL SPACING x 1050 EMITTER

Manufacturer's No: EA5E1050Q     Manufacturer: Turck Banner
EA5E1050Q EZ-ARRAY 5 OPTICAL SPACING x 1050 EMITTER

Availability On Request

£1,729.43
  • Measuring Light Screen
  • Emitter with operating voltage: 12-30 VDC
  • Max. range: 4000 mm
  • Male M12 × 1, 8-pin connector
  • Scan field: 1050 mm
  • Protection class: IP65
  • Resolution: 5 mm
  • Max. range: 4 m
  • 2 × EZA-MBK-11 brackets included in delivery


Product

Manufacturer Material ID -
EA5E1050Q
Net Weight -
4.48kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Fade-out possible -
Height of sensor -
1128 Millimetre
Length of sensor -
45.2 Millimetre
Resolution of the light curtain -
5 Millimetre
Safety field height -
1050 Millimetre
Type of electric connection -
Connector M12
Width sensor -
36 Millimetre
Turck Banner

Availability On Request

£1,729.43
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
