3075424

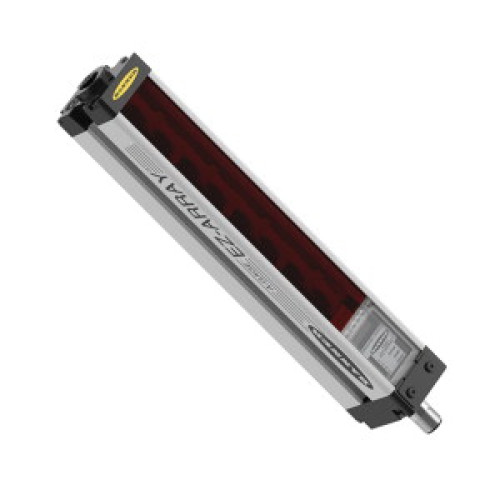

EA5E300Q EZ-ARRAY 5 OPTICAL SPACING x 300 EMITTER

Manufacturer's No: EA5E300Q     Manufacturer: Turck Banner
EA5E300Q EZ-ARRAY 5 OPTICAL SPACING x 300 EMITTER

Availability On Request

£885.58
  • Measuring Light Screen
  • Emitter with operating voltage: 12-30 VDC
  • Max. range: 4 meters
  • Scan field: 300 mm
  • Resolution: 5 mm
  • Male M12 × 1, 8-pin connector
  • Protection class: IP65
  • 2 × EZA-MBK-11 brackets included in delivery


Product

Manufacturer Material ID -
EA5E300Q
Net Weight -
1.56kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Fade-out possible -
Height of sensor -
379 Millimetre
Length of sensor -
45.2 Millimetre
Resolution of the light curtain -
5 Millimetre
Safety field height -
300 Millimetre
Type of electric connection -
Connector M12
Width sensor -
36 Millimetre
Turck Banner

Availability On Request

£885.58
