75417 {B}

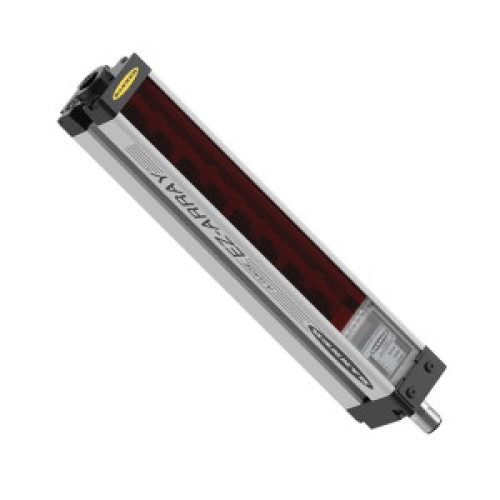

EZ-ARRAY Receiver: 1050 (41.3 in), Range: (matching emitter sold separately) 400 - 4 m, Input: 12-30 V dc, Outputs: 2 Solid-State

Manufacturer's No: EA5R1050NIXMODQ     Manufacturer: Turck Banner
EZ-ARRAY Receiver: 1050 (41.3 in), Range: (matching emitter sold separately) 400 - 4 m, Input: 12-30 V dc, Outputs: 2 Solid-State NPN 2 Analog 4-20 mA EIA-485, 8-pin M12 Integral QD

Availability Available to order

£1,823.09
  • Measuring Light Screen with Receiver
  • Operating Voltage: 12-30 VDC
  • Max. Range: 4m
  • Scan Field: 1050 mm
  • Resolution: 5 mm
  • Protection Class: IP65
  • Male M12 × 1, 8-pin Connector
  • 2x NPN Switching Output
  • 2x Analog Output: 4-20 mA
  • Modbus RTU Communication via RS485

Read more

  • Female M12 × 1, 5-pin Connector
  • Supports Baud Rates: 9600, 19200, 38400, 57600, and 115200 Bd
  • Includes 2 EZA-MBK-11 Brackets in Delivery


Product

Manufacturer Material ID -
EA5R1050NIXMODQ
Net Weight -
3.66kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Fade-out possible -

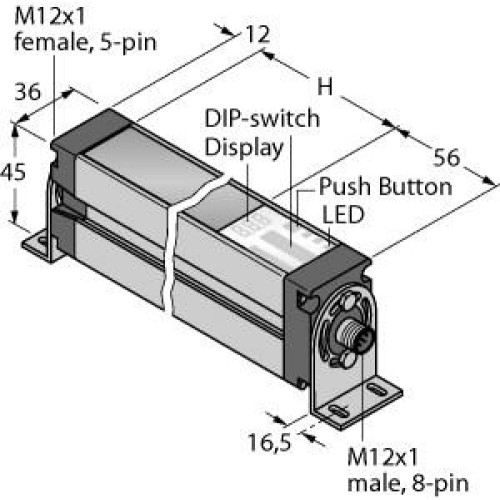

Height of sensor -
1128 Millimetre
Length of sensor -
45.2 Millimetre
Reaction time -
15.7 Millisecond
Resolution of the light curtain -
5 Millimetre
Safety field height -
1050 Millimetre
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
NPN
Width sensor -
36 Millimetre
Turck Banner

Availability Available to order

£1,823.09
