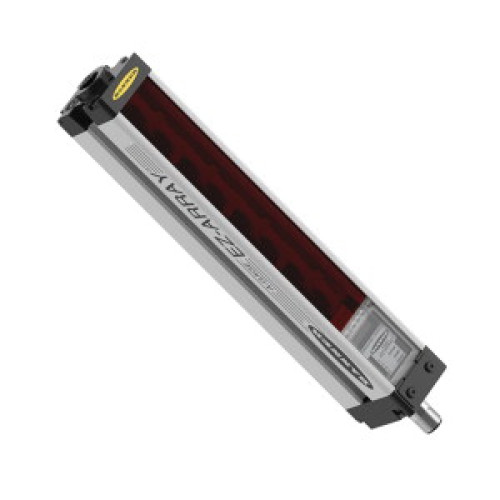

EZ-ARRAY Receiver: 1500 (59.1 in), Range: (matching emitter sold separately) 400 - 4 m, Input: 12-30 V dc, Outputs: 2 Solid-State

Manufacturer's No: EA5R1500PIXMODQ     Manufacturer: Turck Banner
EZ-ARRAY Receiver: 1500 (59.1 in), Range: (matching emitter sold separately) 400 - 4 m, Input: 12-30 V dc, Outputs: 2 Solid-State PNP 2 Analog 4-20 mA EIA-4, 8-pin M12 Integral QD

Availability On Request

£2,296.53
  • Measuring Light Screen
  • Max. range: 4 m
  • Scan field: 1500 mm
  • Resolution: 5 mm
  • Operating voltage: 12-30 VDC
  • Protection class: IP65
  • Receiver: Male M12 × 1, 8-pin
  • Includes 2 × EZA-MBK-11 brackets
  • Output: 2x PNP switching output, 2x analog output 4-20 mA
  • Communication: Modbus RTU via RS485

Read more

  • Connector: Female M12 × 1, 5-pin
  • Supports baud rates: 9600, 19200, 38400, 57600, and 115200 Bd


Product

Manufacturer Material ID -
EA5R1500PIXMODQ
Net Weight -
6.20kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
MX
UNSPSC -
39122216

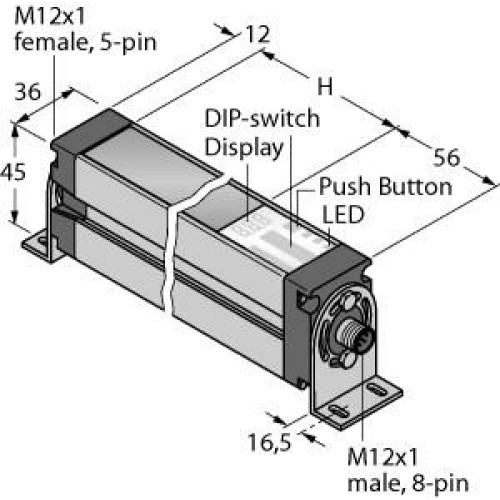

Technical Specification

Ambient temperature -
-40 Degrees celsius
Fade-out possible -
Height of sensor -
1578 Millimetre
Length of sensor -
45.2 Millimetre
Reaction time -
22.2 Millisecond
Resolution of the light curtain -
5 Millimetre
Safety field height -
1500 Millimetre
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
36 Millimetre
Turck Banner

Availability On Request

£2,296.53
