3076196

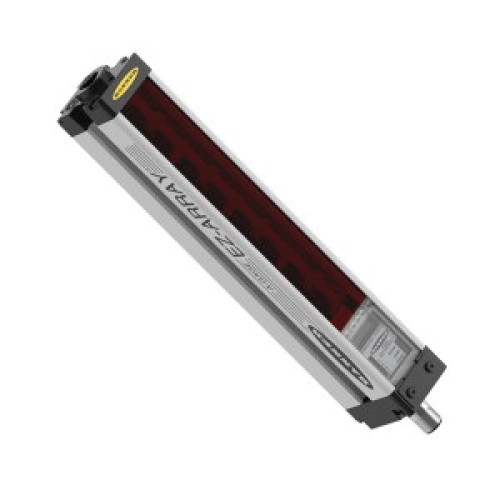

EZ-ARRAY Receiver: 150 (5.9 in), Range: (matching emitter sold separately) 400 - 4 m, Input: 12-30 V dc, Outputs: 2 Solid-State NP

Manufacturer's No: EA5R150NUXMODQ     Manufacturer: Turck Banner
EZ-ARRAY Receiver: 150 (5.9 in), Range: (matching emitter sold separately) 400 - 4 m, Input: 12-30 V dc, Outputs: 2 Solid-State NPN 2 Analog 0-10 V EIA-485, 8-pin M12 Integral QD

Availability On Request

£718.63
  • Measuring Light Screen
  • Max. range: 4 meters
  • Scan field: 150 mm
  • Resolution: 5 mm
  • Operating voltage: 15-30 VDC
  • Protection class: IP65
  • Receiver: Male M12 × 1, 8-pin
  • 2x NPN switching output
  • 2x analog outputs: 0-10 V
  • Modbus RTU via RS485

Read more

  • Female M12 × 1, 5-pin
  • Supports baud rates: 9600, 19200, 38400, 57600, and 115200 Bd
  • 2 × EZA-MBK-11 brackets included in delivery


Product

Manufacturer Material ID -
EA5R150NUXMODQ
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Fade-out possible -
Height of sensor -
227 Millimetre
Length of sensor -
45.2 Millimetre
Reaction time -
2.8 Millisecond
Resolution of the light curtain -
5 Millimetre
Safety field height -
150 Millimetre
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
NPN
Width sensor -
36 Millimetre
Turck Banner

Availability On Request

£718.63
