3015151

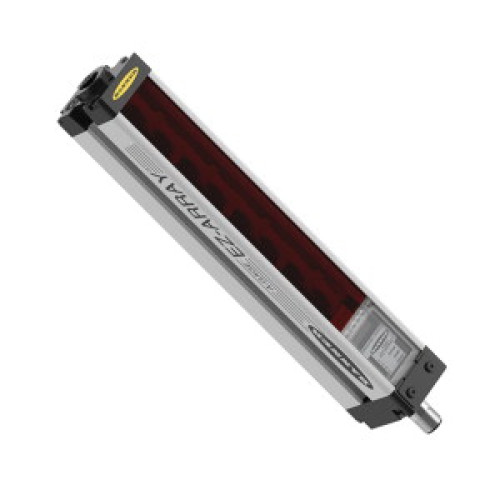

EA5R150XKQ EZ-ARRAY 5 Optical Spacing x 150 RECVR with IO-Link Integral 8-pin M12

Manufacturer's No: EA5R150XKQ     Manufacturer: Turck Banner
EA5R150XKQ EZ-ARRAY 5 Optical Spacing x 150 RECVR with IO-Link Integral 8-pin M12

Availability On Request

£765.81
  • Measuring Light Screen Receiver
  • Operating Voltage: 18-30 VDC
  • Max. Range: 4 meters
  • Resolution: 5 mm
  • Male M12 × 1, 8-pin connector
  • Protection Class: IP65
  • Includes 2 × EZA-MBK-11 brackets
  • IO-Link communication
  • PNP switching output via IO-Link splitter CSB-M1240M1280 (included)
  • Analog output 0-10 V via splitter CSB-M1250M1280 (sold separately)

Read more

  • Extension cable (type DEE2R-8xxD) required between emitter and splitter
  • 2 × PNP switching output (SIO mode)
  • 2 × Analog outputs 0-10 V (SIO mode)


Product

Manufacturer Material ID -
EA5R150XKQ
Net Weight -
0.44kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Fade-out possible -
Height of sensor -
227 Millimetre
Length of sensor -
45.2 Millimetre
Reaction time -
2.8 Millisecond
Resolution of the light curtain -
5 Millimetre
Safety field height -
150 Millimetre
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP/NPN
Width sensor -
36 Millimetre
Turck Banner

Availability On Request

£765.81
