3077541

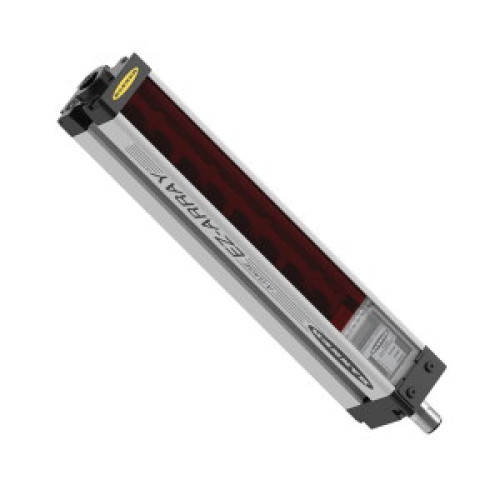

EZ-ARRAY Receiver: 600 (23.6 in), Range: (matching emitter sold separately) 400 - 4 m, Input: 12-30 V dc, Outputs: 2 Solid-State P

Manufacturer's No: EA5R600PUXMODQ     Manufacturer: Turck Banner
EZ-ARRAY Receiver: 600 (23.6 in), Range: (matching emitter sold separately) 400 - 4 m, Input: 12-30 V dc, Outputs: 2 Solid-State PNP 2 Analog 0-10 V EIA-485, 8-pin M12 Integral QD

Availability On Request

£1,250.34
  • Measuring Light Screen

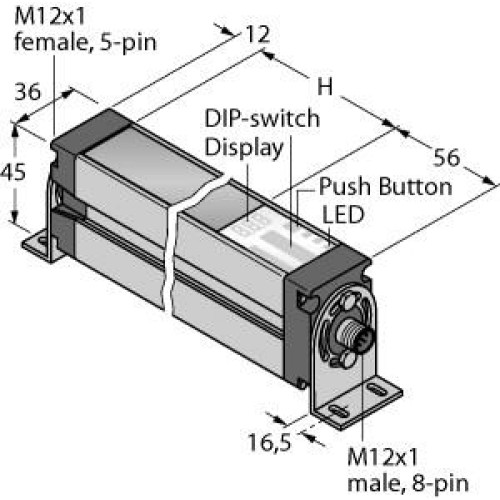

  • Receiver with Male M12 × 1, 8-pin connector
  • Max. range: 4 meters with a resolution of 5 mm
  • Scan field: 600 mm
  • Operating voltage: 15-30 VDC
  • Protection class: IP65
  • 2x PNP switching output and 2x analog outputs (0-10 V)
  • Modbus RTU communication via RS485
  • Female M12 × 1, 5-pin connector
  • Supports baud rates: 9600, 19200, 38400, 57600, and 115200 Bd

Read more

  • Includes 2 EZA-MBK-11 brackets in delivery


Product

Manufacturer Material ID -
EA5R600PUXMODQ
Net Weight -
3.20kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
MX
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Fade-out possible -
Height of sensor -
678 Millimetre
Length of sensor -
45.2 Millimetre
Reaction time -
9.3 Millisecond
Resolution of the light curtain -
5 Millimetre
Safety field height -
600 Millimetre
Type of electric connection -
Connector M12
Type of switching output of the OSSD -
PNP
Width sensor -
36 Millimetre
Turck Banner

Availability On Request

£1,250.34
