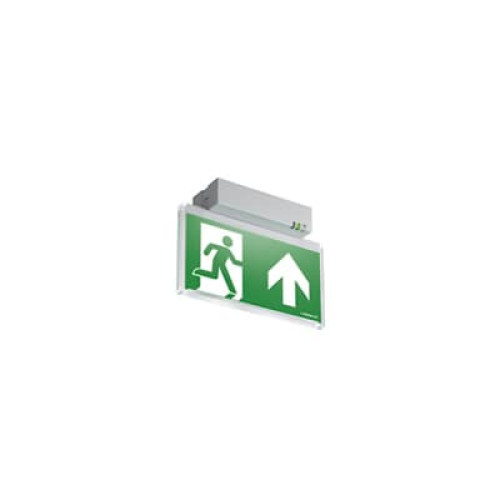

7TCA091160R0359

LED SIGN M3 22M

Manufacturer's No: EG3LS1S22     Manufacturer: ABB
LED SIGN M3 22M

Availability On Request

£360.08
  • LED SIGN M3 22M Guideway Surface Luminaire
  • Input: 220-240V AC, 50Hz
  • 1 LED, 2W
  • Operating Temperature: 5-35°C
  • Includes Arrow Up and Blank Pictogram


Product

Manufacturer Material ID -
EG3LS1S22
Net Weight -
1.10kg

Additional Product Information

Commodity Code -
9405490000
Country of Origin -
GB
Minimum Order Quantity -
1
UNSPSC -
39101612

Technical Specification

Wiring system -
Continuous circuit/emergency circuit
Lamp included -
Battery chemistry -
NiMH
Colour temperature -
5000 Kelvin
Control gear -
LED driver constant current
Cover material -
Plastic transparent
Degree of protection (IP rating) -
IP40
Function -
Escape route signage
Height/depth -
172 Millimetre
Housing colour -
Aluminium
Housing material -
Aluminium
Labelling type -
Insert sheet/plate
Length -
235 Millimetre
Light source included -
Light source type -
LED non-replaceable
Maximum system power -
4 Watt
Monitoring equipment -
Automatic self test
Mounting method -
Wall surface mounted / ceiling surface mounting
Nominal operation time -
3 Hour
Nominal voltage -
220 Volt
Number of lighting heads -
1
Pictogram included -
Power factor -
0.9
Power supply system -
Peripheral (individual battery)
Protection class -
II
Rated ambient temperature acc. IEC62722-2-1 -
5 Degrees celsius
Type of indicator -
Single/double-sided
Viewing distance -
22 Metre
Voltage type -
AC
Width -
66 Millimetre
With remote switch connection -
ABB

Availability On Request

£360.08
