1SKT210161C0001

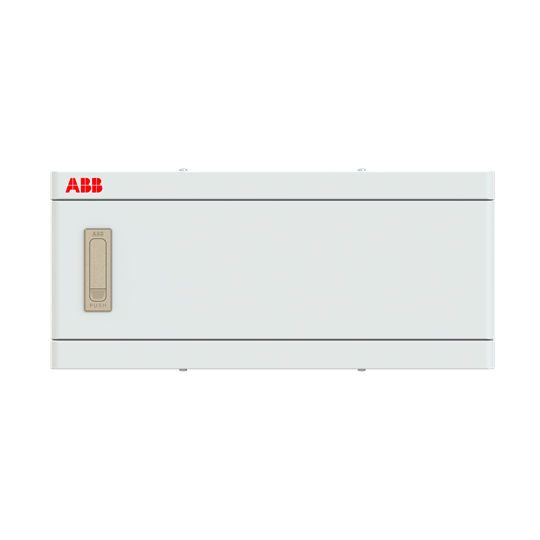

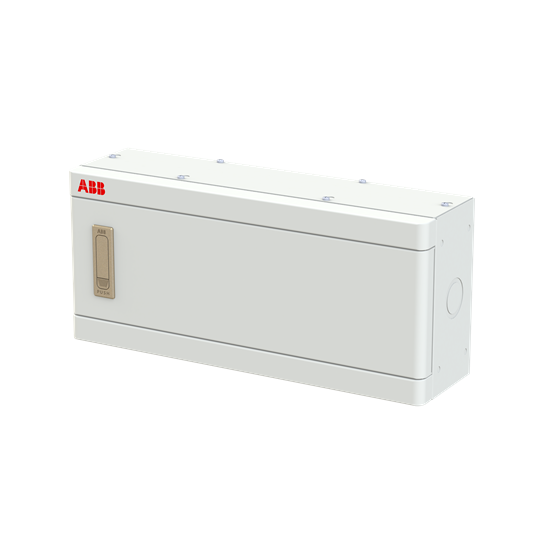

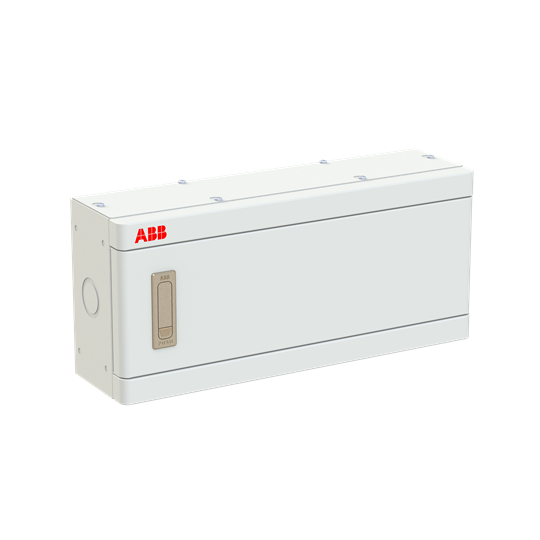

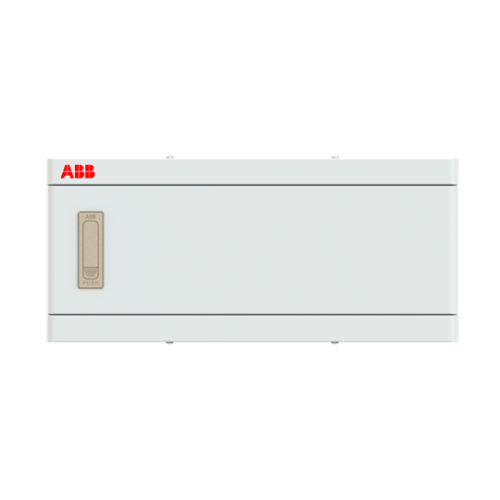

EPP-R1016 Protecta plus DB, Rows: 1, 450 mm x 125 mm x 200 mm, Grounded (Class I), IP43

Manufacturer's No: EPP-R1016     Manufacturer: ABB
EPP-R1016 Protecta plus DB, Rows: 1, 450 mm x 125 mm x 200 mm, Grounded (Class I), IP43

Availability Available to order

£59.78
  • Product: EPP-R1016 Protecta Plus DB
  • Rows: 1
  • Dimensions: 450mm x 125mm x 200mm (H x W x D)
  • Grounded (Class I)
  • IP43 rated
  • Protecta Plus DB row type 1, 16 modules
  • Unique design: Compact size for efficient installation
  • Suitable for industrial applications


Product

Manufacturer Material ID -
EPP-R1016
Net Weight -
5.00kg

Additional Product Information

Commodity Code -
85.38.16
Country of Origin -
EG
UNSPSC -
31261502

Technical Specification

Circuit integrity -
None
Colour -
Grey
Cover model -
With notch
Degree of protection (IP rating) -
IP43
Depth -
200 Millimetre
Extension possible -
Height -
450 Millimetre
Housing material -
Steel
Impact resistance (IK rating) -
IK07
Internal depth -
130 Millimetre
Mounting method -
Surface mounted
Nominal current (In) -
125 Ampere
Number of conduit inlets -
0
Number of modules -
16
Number of openings for flange plates -
2
Number of rows -
1
Plate thickness cabinet -
1 Millimetre
Plate thickness door/cover -
1 Millimetre
Protection class -
I
RAL number -
7035
Recess depth -
130 Millimetre
Surface protection -
Powder coated
Type of covering -
Cover
Type of door -
Single
Width -
125 Millimetre
Width in number of modular spacings -
16
With lock -
ABB
