1SKT240721C0001

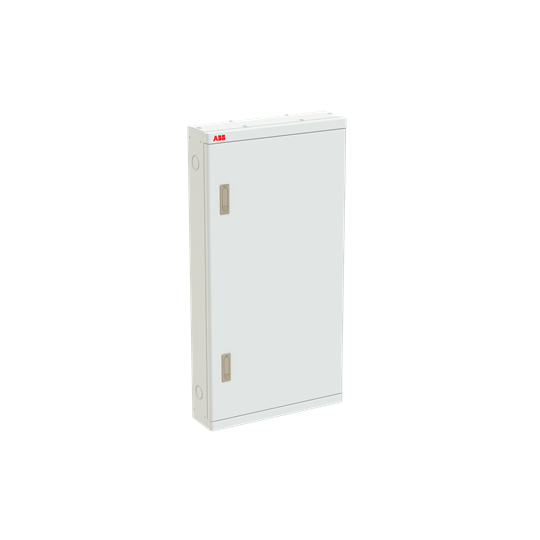

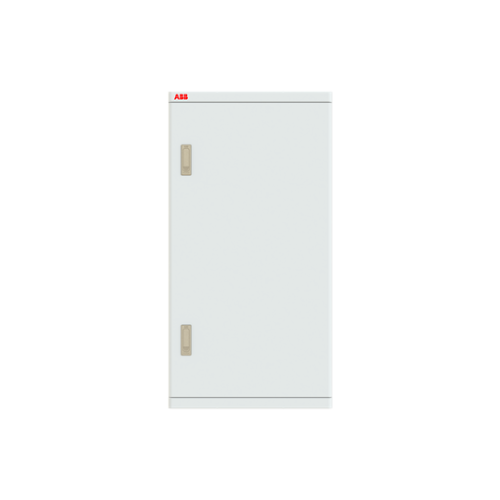

EPP-R4072 Protecta plus DB, Rows: 4, 870 mm x 450 mm x 130 mm, Isolated (Class II), IP43

Manufacturer's No: EPP-R4072     Manufacturer: ABB
EPP-R4072 Protecta plus DB, Rows: 4, 870 mm x 450 mm x 130 mm, Isolated (Class II), IP43

Availability On Request

£229.05
EPP-R4072 DB 12 Way 4 Row 72 Mod


Product

Manufacturer Material ID -
EPP-R4072
Net Weight -

Additional Product Information

Commodity Code -
85.38.20
Country of Origin -
EG
UNSPSC -
31261502

Technical Specification

Circuit integrity -
None
Colour -
Grey
Cover model -
Closed
Degree of protection (IP rating) -
IP43
Depth -
130 Millimetre
Extension possible -
Height -
870 Millimetre
Housing material -
Steel
Impact resistance (IK rating) -
IK07
Internal depth -
129 Millimetre
Mounting method -
Surface mounted
Nominal current (In) -
250 Ampere
Number of modules -
72
Number of openings for flange plates -
2
Number of rows -
4
Plate thickness cabinet -
1 Millimetre
Plate thickness door/cover -
1 Millimetre
Protection class -
II
RAL number -
7035
Recess depth -
130 Millimetre
Surface protection -
Powder coated
Type of covering -
Door
Type of door -
Compartment door
Width -
450 Millimetre
With lock -
ABB

Availability On Request

£229.05
