1SKT131601C0001

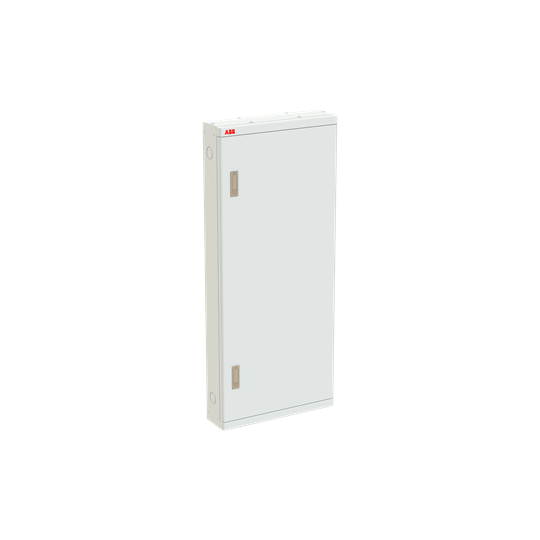

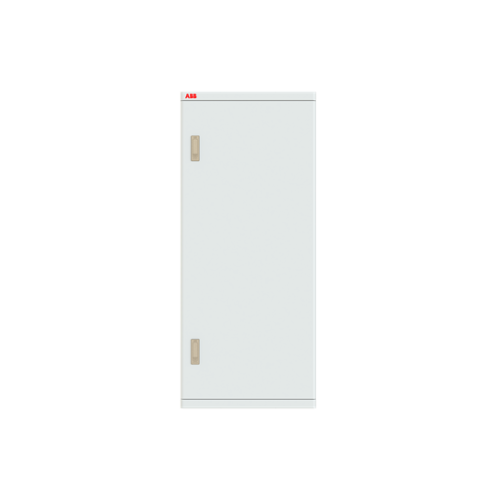

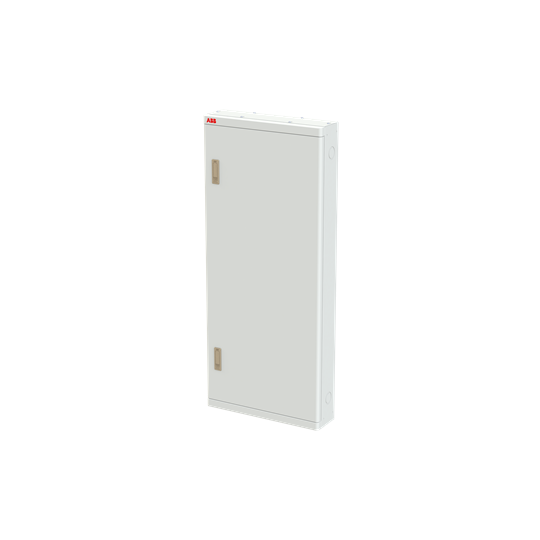

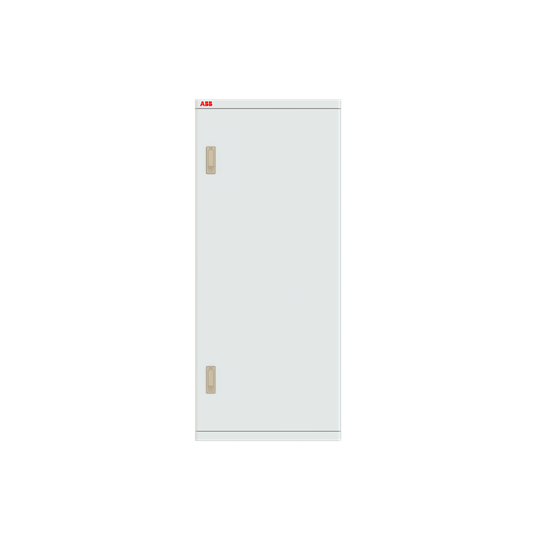

EPP-W316 Protecta plus DB, 450 mm x 125 mm x 1050 mm, Isolated (Class II), IP43

Manufacturer's No: EPP-W316     Manufacturer: ABB
EPP-W316 Protecta plus DB, 450 mm x 125 mm x 1050 mm, Isolated (Class II), IP43

Availability Available to order

£597.79
  • Model: EPP-W316 Protecta Plus DB
  • Dimensions: 450 mm x 125 mm x 1050 mm
  • Isolation: Class II
  • IP Rating: IP43
  • Configuration: 16 Way
  • Enclosure Size: 1050 mm x 450 mm x 130 mm (H x W x D)


Product

Manufacturer Material ID -
EPP-W316
Net Weight -
22.00kg

Additional Product Information

Commodity Code -
85.38.13
Country of Origin -
EG
UNSPSC -
31261502

Technical Specification

Circuit integrity -
None
Colour -
Grey
Cover model -
Closed
Degree of protection (IP rating) -
IP43
Depth -
1050 Millimetre
Extension possible -
Height -
450 Millimetre
Housing material -
Steel
Impact resistance (IK rating) -
IK07
Internal depth -
129 Millimetre
Mounting method -
Surface mounted
Nominal current (In) -
250 Ampere
Number of modules -
48
Number of openings for flange plates -
2
Plate thickness cabinet -
1 Millimetre
Plate thickness door/cover -
1 Millimetre
Protection class -
II
RAL number -
7035
Recess depth -
130 Millimetre
Surface protection -
Powder coated
Type of covering -
Door
Type of door -
Compartment door
Width -
125 Millimetre
With lock -
ABB

Availability Available to order

£597.79
